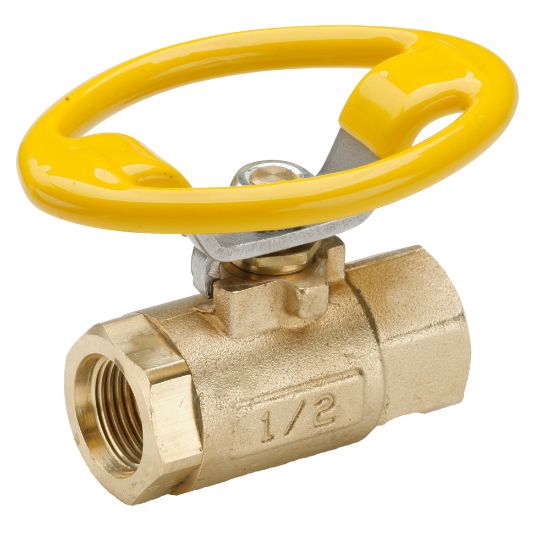

Parker V500P-12-21 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V500P-12-21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Manual	Orifice Size	.69
Body Material	Brass	Minimum Operating Temperature	0
Division	Fluid System Connectors Division	Connection Size	3/4
Mounting Type	Panel, In-Line	Seat Material	PTFE
Seal Material	PTFE	Function	2-Way, Normally Closed, Normally Open
Handle Type	Oval	Maximum Flow Rate	25
Connection Type	NPT, Straight Thread Solder	Maximum Operating Temperature	350
Maximum Operating Pressure	41	Shape	In-Line
Ball Material	Chrome Plated Brass	Product Type	Brass Series 500 Ball Valve
Operation Type	n/a	Configuration	Female-Female PTF Ports
Connection 1 Solder O.D. (inch)	na	Maximum Working Pressure (psi)	600
Connection 2 Solder O.D. (inch)	na	Connection 1 Thread Style	Female Pipe
Connection 1 Thread Size (inch)	3/4	Connection 2 Thread Size (inch)	3/4
Style	Female to Female	Handle	Steel Oval
Connection 2 Thread Style	Female Pipe	Vented	No
Locking Mechanism	Non-Locking	Shape	In Line

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
