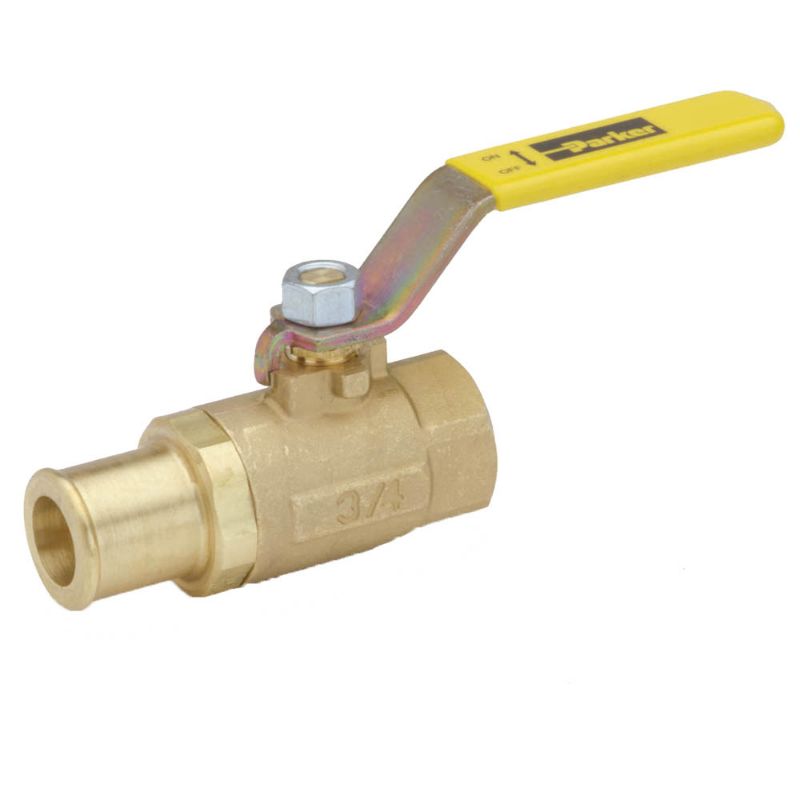

Parker V500P-12-16HB - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V500P-12-16HB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	NPT, Straight Thread Solder	Configuration	Female-Female PTF Ports
Maximum Flow Rate	25	Shape	In-Line
Division	Fluid System Connectors Division	Product Type	Brass Series 500 Ball Valve
Minimum Operating Temperature	0	Connection Size	3/4
Ball Material	Chrome Plated Brass	Operation Type	n/a
Handle Type	Lever	Orifice Size	.69
Actuation Type	Manual	Mounting Type	Panel, In-Line
Body Material	Brass	Maximum Operating Pressure	10
Maximum Operating Temperature	350	Seat Material	PTFE
Function	2-Way, Normally Closed, Normally Open	Seal Material	PTFE
Connection 2 Thread Size (inch)	3/4	Connection 2 Thread Style	Female Pipe
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Hose Barb
Vented	No	Shape	In Line
Handle	Steel Lever	Maximum Working Pressure (psi)	150
Connection 1 Solder O.D. (inch)	na	Style	Female to Hose Barb
Connection 1 Thread Size (inch)	1	Connection 2 Solder O.D. (inch)	na
