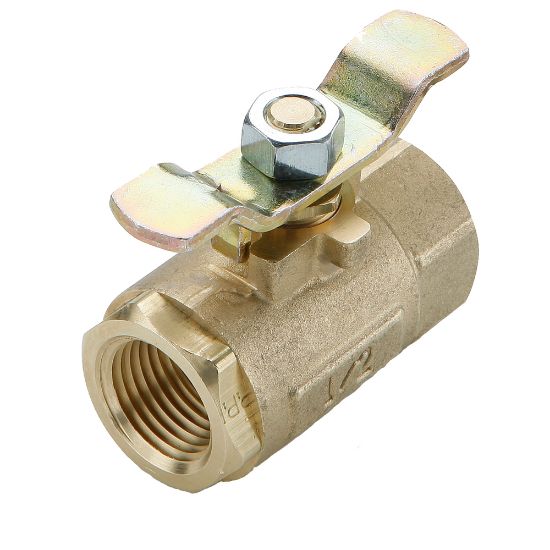

Parker V500P-12-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V500P-12-04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	2-Way, Normally Closed, Normally Open	Handle Type	Lever
Shape	In-Line	Maximum Operating Temperature	350
Maximum Flow Rate	25	Seat Material	PTFE
Seal Material	PTFE	Maximum Operating Pressure	41
Ball Material	Chrome Plated Brass	Configuration	Female-Female PTF Ports
Connection Type	NPT, Straight Thread Solder	Connection Size	3/4
Minimum Operating Temperature	0	Actuation Type	Manual
Orifice Size	.69	Division	Fluid System Connectors Division
Mounting Type	Panel, In-Line	Body Material	Brass
Operation Type	n/a	Product Type	Brass Series 500 Ball Valve
Connection 1 Thread Size (inch)	3/4	Connection 1 Thread Style	Female Pipe
Connection 1 Solder O.D. (inch)	na	Connection 2 Thread Style	Female Pipe
Style	Female to Female	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	600	Shape	In Line
Handle	Tee Handle	Connection 2 Thread Size (inch)	3/4
Locking Mechanism	Non-Locking	Vented	No
