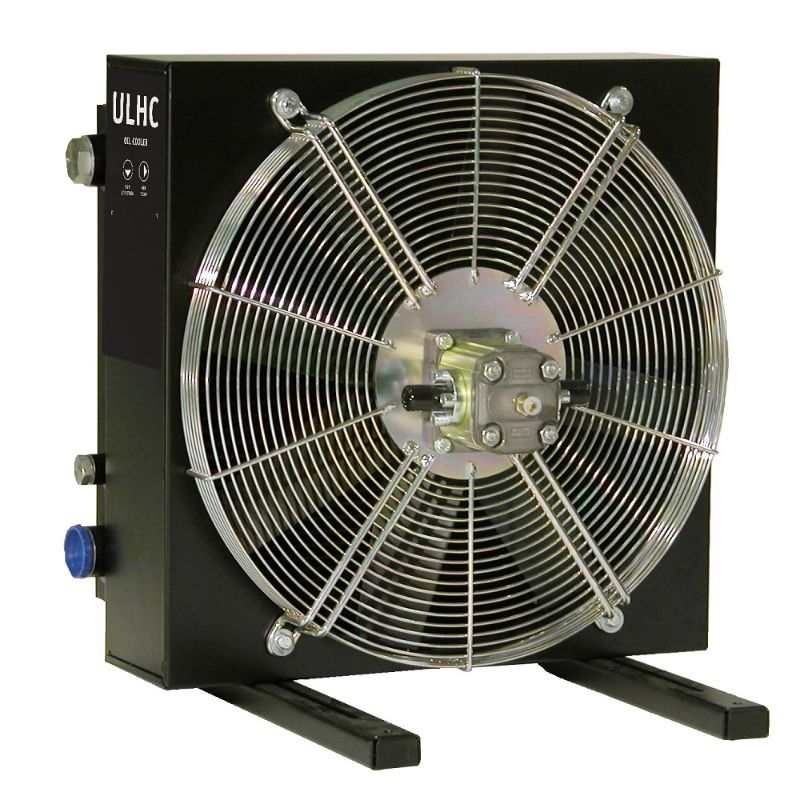

Parker ULHC-007-A-100SA - Air Oil Cooler with Hydraulic Motor - ULHC Series - (Americas)

ULHC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 215hp of cooling and are suitable for most industrial and mobile applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULHC-007-A-100SA

Products specifications

Attribute name	Attribute value
Maximum Operating Speed	3500 RPM (Fan)	Maximum Fluid Temperature	250
Port Size	1 inch (#16)	Maximum Cooling Capacity	12 HP @ 1500 rpm
Flow Rate	33	Height	15.6
Connection Thread Size	1-5/16"-12	Materials of Construction	Aluminum (Cooler Core)
Weight	22	Maximum Operating Pressure	300
Width	20.1	Noise Level	62 dBA @ 1500 rpm
For Fluid Type	Mineral Oil	Division	Accumulator and Cooler Division
Length	14.4	Switch Type	100° F thermal switch
Bypass Options	20 psi External Hose Bypass	Size	Size 007
Motor Displacement (cc/rev)	8.4 cm3/rev
