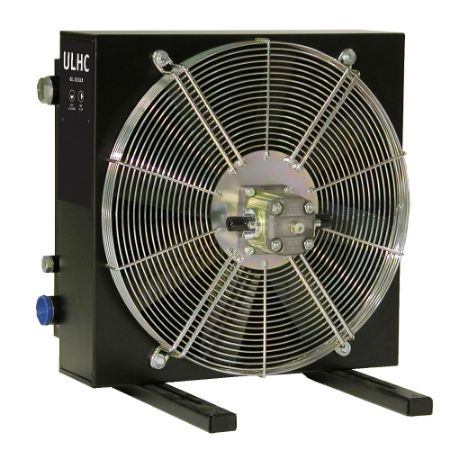

Air Oil Cooler with Hydraulic Motor - ULHC Series - (Americas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's ULHC Air Oil Cooler offers quiet fan operation, low pressure drop and high cooling capability. These coolers utilizes a robust bar and plate construction, providing a more efficient and compact design when compared to traditional tube and fin construction. The ULHC Series features 6 different hydraulic motor displacements to meet application requirements.
Markets:
• Construction
• Forestry
• Material Handling
• Agriculture
• Industrial
• Marine & Offshore
• Oil & Gas
• Renewable & Wind Energy
• Power Generation
Features/Benefits:
• Up to 215hp of cooling capacity (70°F ETD)
• Compact design results in lighter weight, higher cooling capacity, and lower pressure drop
• Optimized design results in reliable and long lasting cooling with low service and maintenance costs
• Quiet fan design due to optimization of blade and materials
• Extra corrosion protection available for use in marine/offshore and extreme applications
• Several options available: Thermal switch, Pressure bypass, Air filter, Fan guard/screen, etc.
Applications:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic power units
• Lubrication systems
• Hydraulic presses
• Plastics machinery
Read More...Markets:
• Construction
• Forestry
• Material Handling
• Agriculture
• Industrial
• Marine & Offshore
• Oil & Gas
• Renewable & Wind Energy
• Power Generation
Features/Benefits:
• Up to 215hp of cooling capacity (70°F ETD)
• Compact design results in lighter weight, higher cooling capacity, and lower pressure drop
• Optimized design results in reliable and long lasting cooling with low service and maintenance costs
• Quiet fan design due to optimization of blade and materials
• Extra corrosion protection available for use in marine/offshore and extreme applications
• Several options available: Thermal switch, Pressure bypass, Air filter, Fan guard/screen, etc.
Applications:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
• Hydraulic power units
• Lubrication systems
• Hydraulic presses
• Plastics machinery
| Action | Part No. | Availability | Partner Available | Price | Noise Level | Height | Port Size | Maximum Fluid Temperature | Flow Rate | Length | Maximum Cooling Capacity | Width | Materials of Construction | Weight | Maximum Operating Pressure | Connection Thread Size | Maximum Operating Speed | Division | For Fluid Type | Switch Type | Bypass Options | Motor Displacement (cc/rev) | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ULHC-007-B-000-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Phosphate Ester | No Thermal Switch | 20 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-000-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | No Thermal Switch | 65 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-000-SW | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | No Thermal Switch | no bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-100-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 100° F thermal switch | 20 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-100-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 100° F thermal switch | 65 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-100-SW | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 100° F thermal switch | no bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-120-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 17.7 HP @ 3000 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 120° F thermal switch | 20 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-120-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 120° F thermal switch | 65 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-120-SW | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 120° F thermal switch | no bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-140-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 140° F thermal switch | 20 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-140-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 140° F thermal switch | 65 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-140-SW | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 140° F thermal switch | no bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-160-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 160° F thermal switch | 20 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-160-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 160° F thermal switch | 65 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-160-SW | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 160° F thermal switch | no bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-175-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 175° F thermal switch | 20 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-175-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 175° F thermal switch | 65 psi External Hose Bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-B-175-SW | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | 175° F thermal switch | no bypass | 10.8 cm3/rev | Size 007 | ||
| ULHC-007-C-000-SA | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | No Thermal Switch | 20 psi External Hose Bypass | 14.4 cm3/rev | Size 007 | ||
| ULHC-007-C-000-SB | Quote Required | TBD | 62 dBA @ 1500 rpm | 15.6 | 1 inch (#16) | 250 | 33 | 14.4 | 12 HP @ 1500 rpm | 20.1 | Aluminum (Cooler Core) | 22 | 300 | 1-5/16"-12 | 3500 RPM (Fan) | Accumulator and Cooler Division | Mineral Oil | No Thermal Switch | 65 psi External Hose Bypass | 14.4 cm3/rev | Size 007 |
