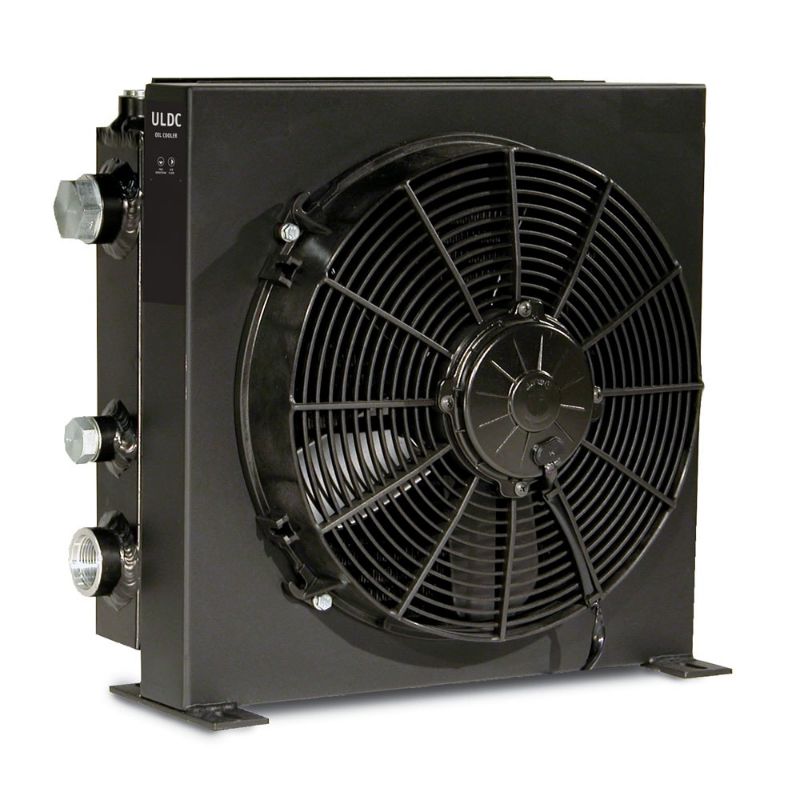

Parker ULDC-007-B-000SW - Air Oil Cooler with DC Motor - ULDC Series - (Americas)

ULDC Series mobile air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 37hp of cooling and are suitable for most mobile applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULDC-007-B-000SW

$1,369.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Width	6.8 inch
Maximum Operating Pressure	300 psi	Materials of Construction	Aluminum
Height	13.3 inch	Connection Thread Size	1-5/16"-12 inch
Division	Accumulator and Cooler Division	For Fluid Type	Water Glycol
Maximum Cooling Capacity	7.2 kW	Port Size	1
Noise Level	71 dBA	Input Voltage	24 VDC
Weight	20 lb	Flow Rate	33.0 Gal/min
Length	13 inch	Motor Power Output Rating	0.27 HP
Maximum Fluid Temperature	121 °C	Specifications Met	n/a
Bypass Options	no bypass	Size	ULDC-007
Motor Type	24 VDC	Thermoswitch	None
