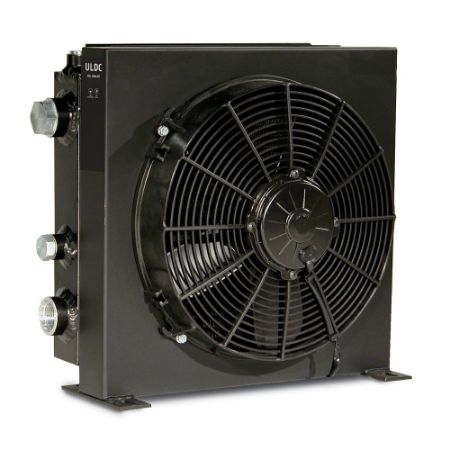

Air Oil Cooler with DC Motor - ULDC Series - (Americas)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's ULDC Series Air Oil Cooler is a compact mobile hydraulic oil cooler providing quiet fan/motor operation, low pressure drop and high cooling system capability. These coolers utilize a robust bar and plate construction, providing a more efficient and compact design when compared to traditional tube and fin construction. The ULDC Series features either 12 volt or 24 volt DC motors.
Markets:
• Construction
• Forestry
• Material Handling
• Agriculture
• Automotive
• Marine & Offshore
• Oil & Gas
• Renewable & Wind Energy
• Power Generation
Features and Benefits:
• Up to 37hp of cooling capacity (70°F ETD)
• Compact design results in lighter weight, higher cooling capacity, and lower pressure drop
• Optimized design results in reliable and long-lasting cooling with low service and maintenance costs
• Quiet fan/motor design due to optimization of materials
• Several options available: Thermal switch, Pressure bypass, Air filter, Fan guard/screen, etc.
Applications:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles
| Action | Part No. | Availability | Partner Available | Price | Division | Materials of Construction | Input Voltage | Length | Maximum Cooling Capacity | Maximum Fluid Temperature | Port Size | For Fluid Type | Weight | Height | Noise Level | Connection Thread Size | Motor Power Output Rating | Flow Rate | Width | Maximum Operating Pressure | Specifications Met | Size | Thermoswitch | Bypass Options | Motor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ULDC-003-A-000SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | None | no bypass | 12 VDC | ||
| ULDC-003-A-100SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 100°F | no bypass | 12 VDC | ||
| ULDC-003-A-120SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 120°F | no bypass | 12 VDC | ||
| ULDC-003-A-140SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 140°F | no bypass | 12 VDC | ||
| ULDC-003-A-160SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 160°F | no bypass | 12 VDC | ||
| ULDC-003-A-175SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 175°F | no bypass | 12 VDC | ||
| ULDC-003-B-000SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 24 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | None | no bypass | 24 VDC | ||
| ULDC-003-B-100SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 24 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 100°F | no bypass | 24 VDC | ||
| ULDC-003-B-120SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 24 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 120°F | no bypass | 24 VDC | ||
| ULDC-003-B-140SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 24 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 140°F | no bypass | 24 VDC | ||
| ULDC-003-B-160SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 24 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 160°F | no bypass | 24 VDC | ||
| ULDC-003-B-175SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 24 | 9.6 | 4.1 | 250 | 1 inch (#16) | Mineral Oil | 11 | 8.9 | 68 | 1-5/16"-12 | 0.13 | 28.0 | 5.9 | 300 | N/A | ULDC-003 | 175°F | no bypass | 24 VDC | ||
| ULDC-004-A-000SW | Quote Required | TBD | Accumulator and Cooler Division | Glass Fiber Reinforced Polypropylene | 12 VDC | 10.5 inch | 4.7 kW | 121 °C | 1 | Phosphate Ester | 13 lb | 254 mm | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 106.0 L/min | 152.4 mm | 300 psi | N/A | ULDC-004 | None | no bypass | 12 VDC | ||
| ULDC-004-A-100SW | Quote Required | TBD | Accumulator and Cooler Division | Electrostatically Powder-Coated Surface Treatment | 12 VDC | 10.5 inch | 6.3 HP | 121 °C | 1 | Phosphate Ester | 6 kg | 254 mm | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 106.0 L/min | 6 inch | 20.7 bar | N/A | ULDC-004 | 100°F | no bypass | 12 VDC | ||
| ULDC-004-A-120SW | Quote Required | TBD | Accumulator and Cooler Division | Glass Fiber Reinforced Polypropylene | 12 VDC | 10.5 inch | 6.3 HP | 250 °F | 1 | Mineral Oil | 13 lb | 10 inch | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 106.0 L/min | 152.4 mm | 20.7 bar | N/A | ULDC-004 | 120°F | no bypass | 12 VDC | ||
| ULDC-004-A-140SW | Quote Required | TBD | Accumulator and Cooler Division | Electrostatically Powder-Coated Surface Treatment | 12 VDC | 254 mm | 6.3 HP | 121 °C | 1 | Mineral Oil | 6 kg | 254 mm | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 28.0 Gal/min | 6 inch | 20.7 bar | N/A | ULDC-004 | 140°F | no bypass | 12 VDC | ||
| ULDC-004-A-160SW | Quote Required | TBD | Accumulator and Cooler Division | Steel | 12 VDC | 254 mm | 6.3 HP | 121 °C | 1 | Water Glycol | 6 kg | 254 mm | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 106.0 L/min | 6 inch | 300 psi | N/A | ULDC-004 | 160°F | no bypass | 12 VDC | ||
| ULDC-004-A-175SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum (Cooler Core) | 12 | 10.5 | 6.3 | 250 | 1 inch (#16) | Mineral Oil | 13 | 10 | 63 | 1-5/16"-12 | 0.13 | 28.0 | 6 | 300 | N/A | ULDC-004 | 175°F | no bypass | 12 VDC | ||
| ULDC-004-B-000SW | Quote Required | TBD | Accumulator and Cooler Division | Aluminum | 24 VDC | 10.5 inch | 4.7 kW | 250 °F | 1 | Water Glycol | 6 kg | 254 mm | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 106.0 L/min | 152.4 mm | 300 psi | N/A | ULDC-004 | None | no bypass | 24 VDC | ||
| ULDC-004-B-100SW | Quote Required | TBD | Accumulator and Cooler Division | Glass Fiber Reinforced Polypropylene | 24 VDC | 254 mm | 4.7 kW | 250 °F | 1 | Mineral Oil | 6 kg | 254 mm | 63 dBA | 1-5/16"-12 inch | 0.13 HP | 28.0 Gal/min | 6 inch | 20.7 bar | N/A | ULDC-004 | 100°F | no bypass | 24 VDC |
