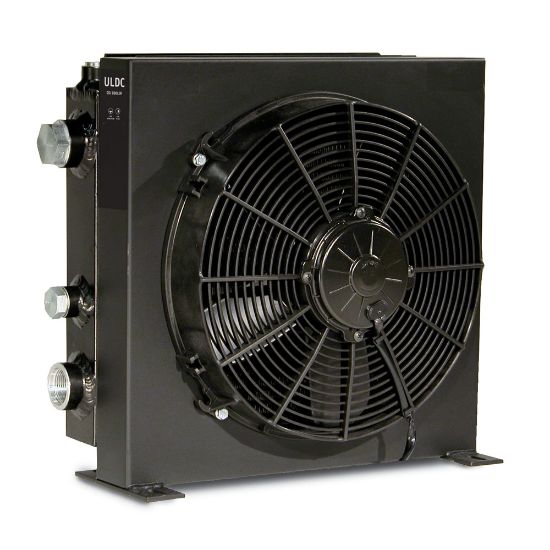

Parker ULDC-003-B-175SW - Air Oil Cooler with DC Motor - ULDC Series - (Americas)

ULDC Series mobile air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 37hp of cooling and are suitable for most mobile applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULDC-003-B-175SW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	N/A	Motor Power Output Rating	0.13
Noise Level	68	Connection Thread Size	1-5/16"-12
Materials of Construction	Aluminum (Cooler Core)	Input Voltage	24
Maximum Operating Pressure	300	Weight	11
For Fluid Type	Mineral Oil	Height	8.9
Length	9.6	Division	Accumulator and Cooler Division
Flow Rate	28.0	Width	5.9
Maximum Cooling Capacity	4.1	Maximum Fluid Temperature	250
Port Size	1 inch (#16)	Thermoswitch	175°F
Motor Type	24 VDC	Size	ULDC-003
Bypass Options	no bypass
