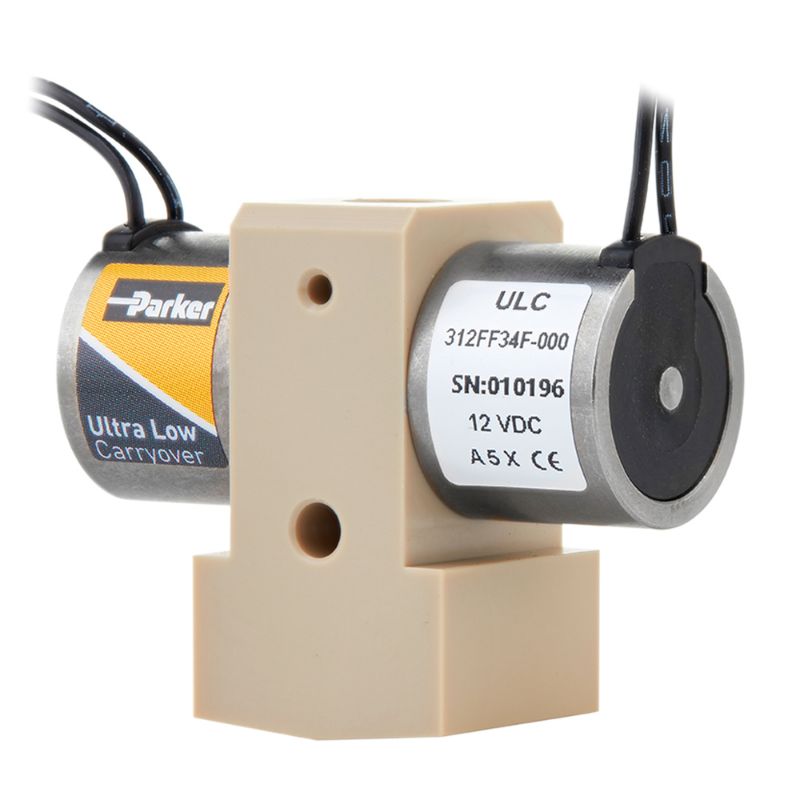

Parker ULC-312FF34F-000 - Ultra Low Carryover Gradient Valve

Miniature Liquid Gradient Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-312FF34F-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Coefficient	0.013	Division	Precision Fluidics Division
Body Material	PEEK	Maximum Fluid Temperature	50C 122F
Pressure Rating	45 psig (3.1 bar)	Actuation Type	Solenoid
Coil Specifications Met	Yes	Flow Rate	Up to 375mL/min
Orifice Size	0.03" (0.75mm)	Electrical Connection	Latching connectors with 4.5" (114 mm) leads
Weight	1.19 oz (33.7g)	Coil Power Consumption	3.0 Watts per coil
Response Time	< 10 msec	Maximum Flow Rate	375
Valve Type	Normally Closed	For Fluid Type	Liquids
Industry	Analytical Chemistry, Clinical Diagnostics	Length	1.19" (30.3 mm)
Application	HPLC Gradient Proportioning, selector valve	Function	Two Channel Proportioning Valve
Cycles per Lifetime	50 Million Cycles	Height	0.65" (16.4 mm)
Internal Leak Rate	0.15 sccm of Air	Maximum Operating Pressure	45 psig (3.1 bar)
Width	1.47" (37.3mm)	Input Voltage	12V
Seal Material	FFKM	Mounting Option	1/4 - 28
Valve Configuration	Two Channel (3 Port)
