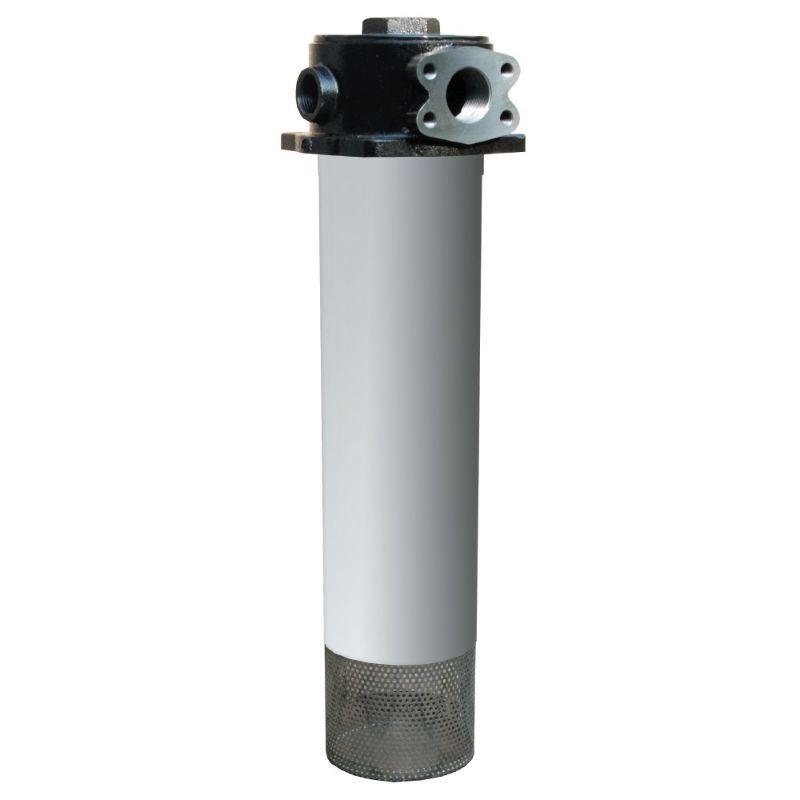

Parker STF1005QLBP2ELC24G - Tanktop Mounted Return Line Filter - STF Series

The STF Series return line filters are designed for situations where the use of aluminium is restricted in applications such as marine and industrial.
Max. flow 500 l/min - Max. pressure 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. STF1005QLBP2ELC24G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	-40 to 100 °C	Flow Rate	500 L/min
Mounting Type	Tank Mounted	Division	Hydraulic & Industrial Process Filtration Division EMEA
Housing Material	Cast Iron (GGG40)	Pressure Rating	10 bar
Indicator Type	No indicator, ports plugged L+R	Flow Rate	0 to 400 l/min
Bypass Valve Pressure Rating	1.5 bar	Connection Type	1½"SAE-3000 + G1
Micron Rating	5 µm	Options	Diffuser type T, Air tight
Filter Element Type	05QL Ecoglass	Seal Material	Nitrile
