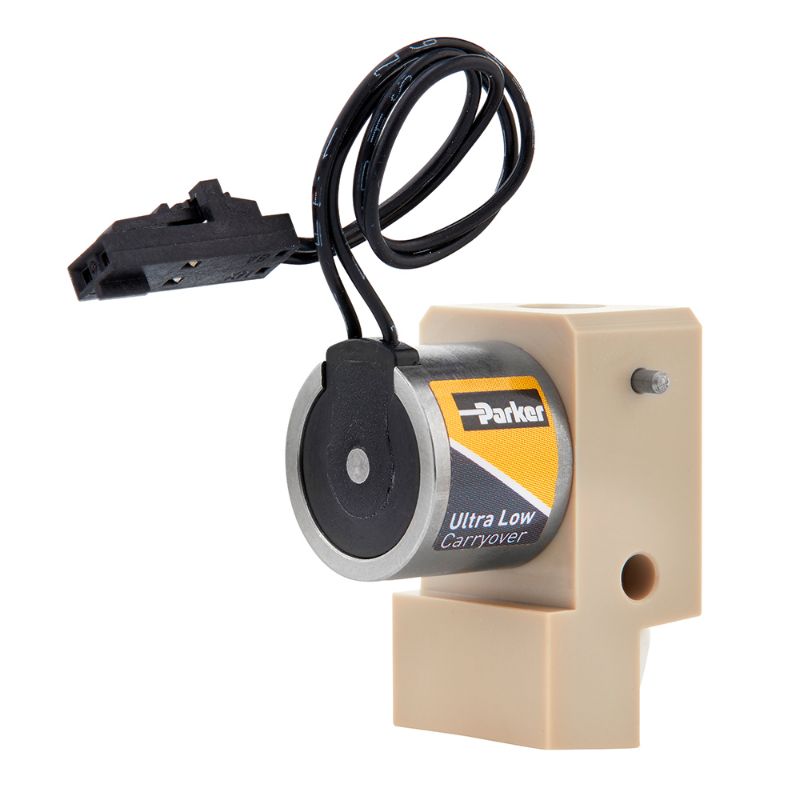

Parker ULC-212EP34F-000 - Ultra Low Carryover Valve

Parker's Ultra Low Carryover Valve features best-in-class carryover performance and the ability to reduce fluidic circuit complexity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-212EP34F-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Weight	.0432	Weight	0.69 oz (19.6g)
Orifice Size	0.03" (0.76 mm)	Electrical Connection	4.5" (114 mm) leads with Molex connector
Valve Type	2 Port 2 Mode	Internal Leak Rate	0.15 sccm of Air
Height	0.65" (16.4 mm)	Weight Unit of Measure	lbs
Length	0.98" (24.77 mm)	Pressure Rating	45 psig (3.1 bar)
Width	1.19" (30.22 mm)	Flow Rate	Up to 320 mL/min
Division	Precision Fluidics Division	Industry	Clinical Diagnostics, Analytical Chemistry
Body Material	PEEK	Standard Lead Time	5
Shipping Weight	0.25	Flow Coefficient	0.011
Out of Stock Lead Time	20	Application	Sampling, Reagent Addition, Flow Control, Proportioning
Coil Power Consumption	3.0 Watts per coil	Response Time	< 10 msec
Cycles per Lifetime	10 Million Cycles	Max Order Quantity	9
Seal Material	EPDM	Input Voltage	12V
Fluid Port Connection	1/4 - 28	Valve Configuration	2 Port
