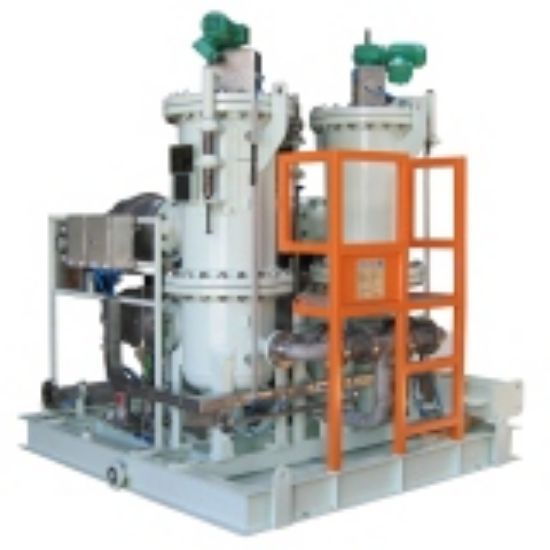

Parker TOV - Automatic self cleaning filter system

The automatic self cleaning filter system is specially designed for high flow rates and continuous operation. Note: A TwinOmatic is a custom made piece of equipment, always contact us for your specific requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TOV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	842 to 1660 lb (Empty)	Filter Efficiency Rating	50 to 500 micron depending on application.
Brand	Twin Filter	Filter Area	9 to 23
Materials of Construction	Housing: Carbon Steel <br/>Screen: Stainless steel 316L<br/>Nozzles: PVC <br/>others on request	Equipment Type	Filtration
Height	80.3 to 102	Division	Industrial Process Filtration Division
Connection Size	DN 150 to DN 350	Flow Rate	750 to 11350 bbl/hr
Control Voltage	Electrical / PLC	Width	27 to 32
Minimum Operating Pressure	29	Industry Application	Water Intake
Maximum Operating Temperature	122.0	Clean Pressure Drop	'< 1.45 psi / < 0,1 bar
Filter Type	Vertical

Product resources

Literature and Reference Materials

Oil and Gas Drilling Brochure (PDF)
