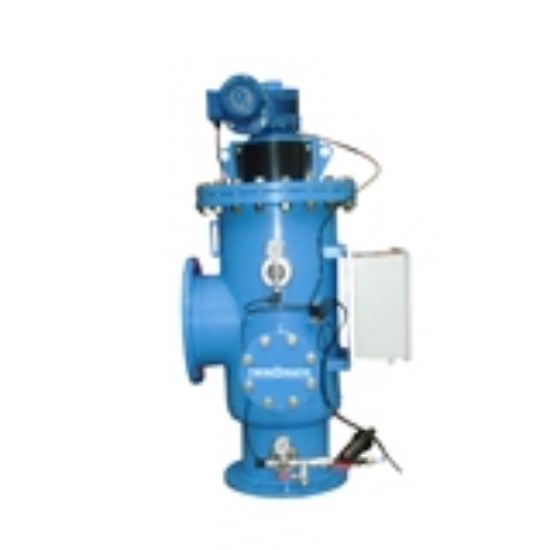

Parker TOB - Automatic self cleaning filter system

The automatic self cleaning filter system is specially designed for high flow rates and continuous operation. Note: A TwinOmatic is a custom made piece of equipment, always contact us for your specific requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TOB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Industry Application	Water Intake	Equipment Type	Filtration
Width	32.5 to 38	Division	Industrial Process Filtration Division
Control Voltage	Electrical / PLC	Flow Rate	3150 to 11350 bbl/hr
Materials of Construction	Housing: Carbon Steel <br/>Screen: Stainless steel 316L<br/>Brushes: Polypropylene <br/>others on request	Minimum Operating Pressure	29
Clean Pressure Drop	'< 1.45 psi / < 0,1 bar	Maximum Operating Temperature	122.0
Weight	683 to 1345 lb (Empty)	Filter Efficiency Rating	> 200 % depending on application.
Connection Size	DN 150 to DN 350	Brand	Twin Filter
Height	52.2 to 77.8	Filter Area	9 to 23
Filter Type	Brush

Product resources

Literature and Reference Materials

Oil and Gas Drilling Brochure (PDF)
