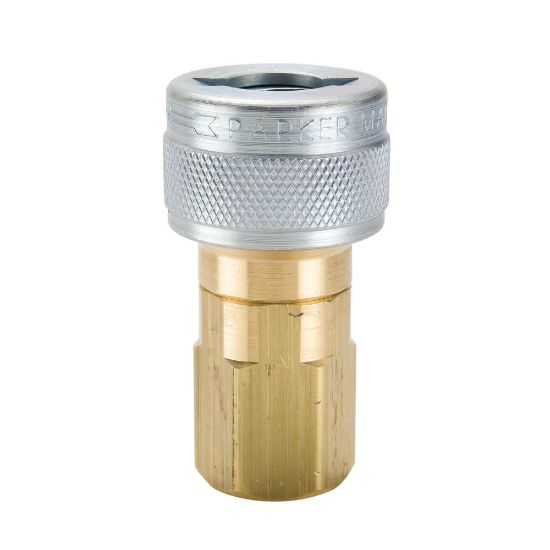

Parker TL-501-8FP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. TL-501-8FP

$109.34

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	1.13 inch
Plating Type	Zinc with clear trivalent chromate plating on steel sleeve	Interchange Type	Schrader Twist Lock
Maximum Operating Pressure	300 psi	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Body Material	Brass
Seal Material	Nitrile	Application	Pneumatic
Maximum Operating Temperature	250 °F	Product Type	Push to Connect
Connection Thread Size (inch)	1/2 - 14	Valve Type	Tubular
Coupling Half	Female Coupler	Connection Type	Female NPTF
Body Size (inch)	1/2	Hose I.D. (inch)	na
