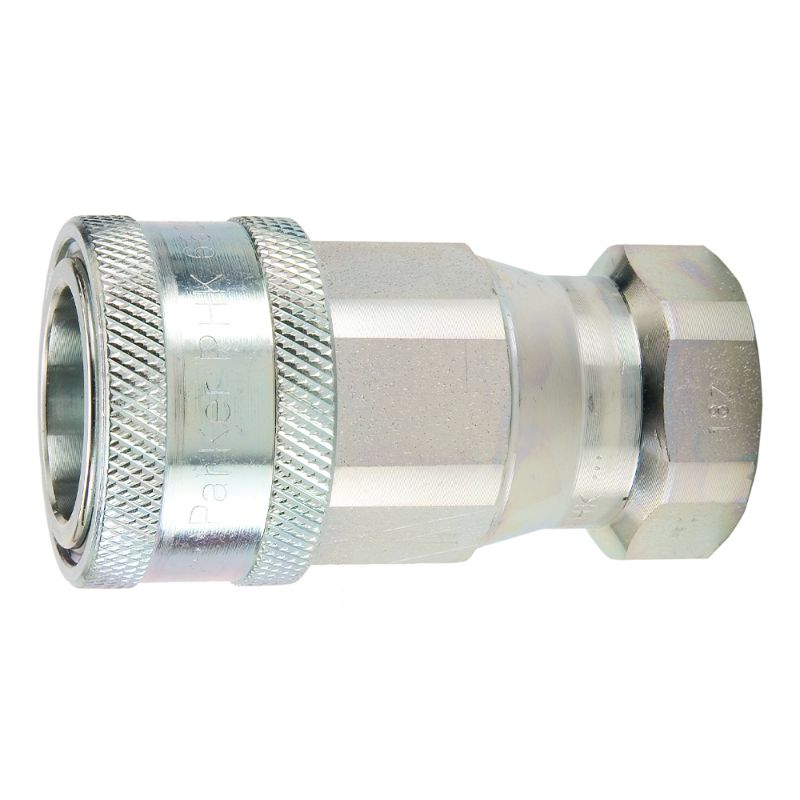

Picture of Parker 6601-12-12 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 6601-12-12 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.
AFP Availability:
77 In Stock
Richmond, VA36
Norfolk, VA10
Ashland, VA6 (Pickup only)
Sumter, SC5
Summerville, SC4
Mooresville, NC4
Richmond, VA2 (Pickup only)
Jacksonville, FL2
Fayetteville, NC2
Knoxville, TN2
Johnson City, TN2 (Pickup only)
Knoxville, TN2
Partner Available:403 In Stock
Brand Parker
Part No. 6601-12-12
$84.50/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMinimum Operating Temperature-40 °F
Hex Size1.62 inchDivisionQuick Coupling Division
Seal MaterialNitrileMaximum Operating Temperature250 °F
Plating TypeZinc with clear trivalent chromateProduct TypeManual Connect
Body MaterialSteelApplicationHydraulics
Valve TypePoppetMaximum Operating Pressure4000 psi
Dimensional Weight0.15995203836930455 lbFlow Rate28 Gal/min
Specifications MetISO 7241-1 Series AInterchange TypeISO 7241-1 Series A
Coupling HalfFemale CouplerConnection TypeFemale NPTF
Connection Thread Size (inch)3/4 - 14Body Size (inch)3/4"
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
