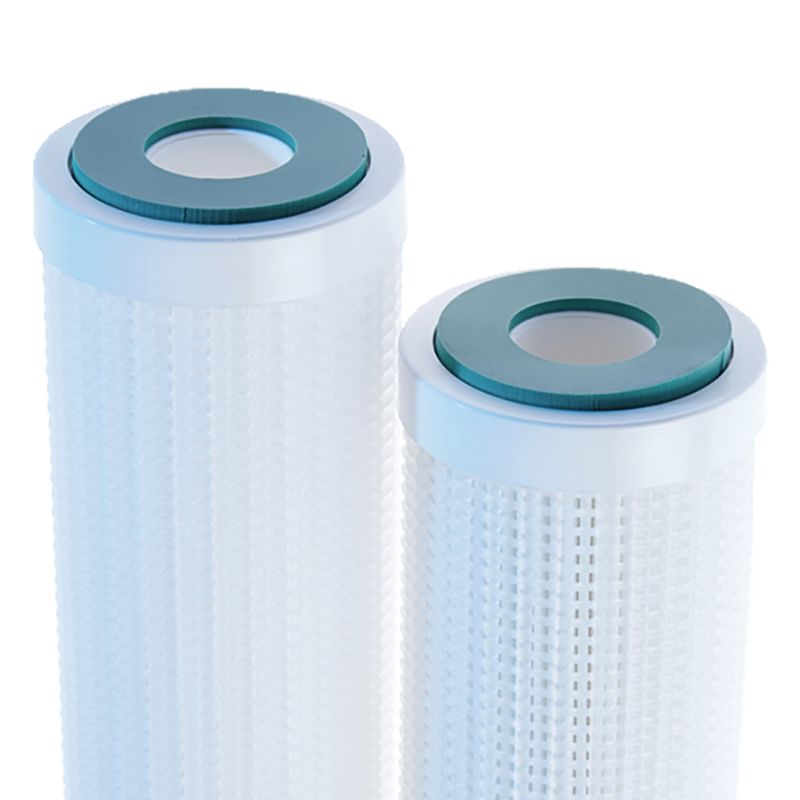

Parker TH1-40-2OS - Absolute Rated Thermally Welded Glass Fibre Liquid Filters - PLEATFLOW TH

The high performance Pleatflow TH cartridge is specifically manufactured for the filtration of oilfield fluids and its fully thermal welded construction ensures safe operation and optimum filtration performance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TH1-40-2OS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	176.0	Brand	Parker
Connection Size	Type 222	Division	Industrial Process Filtration Division
Media	Glass Microfibre	Special Option	Viton O-ring / High Temperature
Inside Diameter	1.1	Seal Material	Buna-N
Filter Efficiency Rating	0.5 to 50	Core Material	Molded Polypropylene
Maximum Pressure Differential	2.5	End Cap Configuration	222 Single Open End / Flat or Spear
Outside Diameter	2.5	Maximum Flow Rate	44 bbl/hr
Industry	Oil and Gas	Filter Construction	Pleated Depth
Function	Clarification/Prefiltration/Polishing	End Cap Configuration	222 Single Open End / Spear
Length	40" (1005 mm)	Micron Rating	1 μm

Product resources

Literature and Reference Materials

Oil and Gas Drilling Brochure (PDF)
