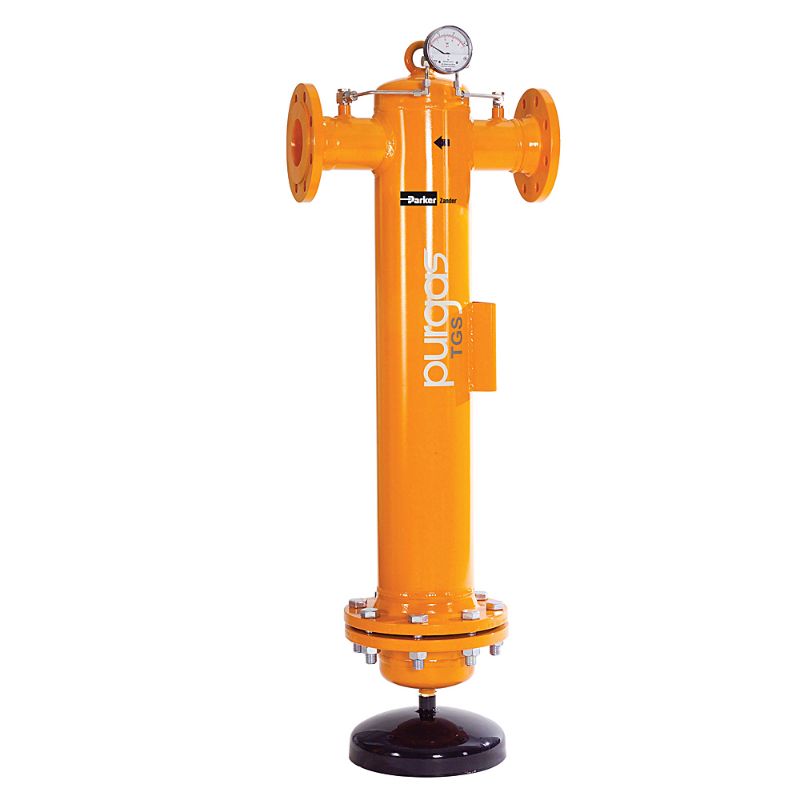

Parker TGS214/16CF-F/A - TGS Series Large Flow Fabricated Carbon Steel Filters for Technical and Industrial Gases

Parker TGS Series large flow fabricated filters for filtration of technical and industrial gases in applications up to 16 bar(g).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGS214/16CF-F/A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	14.96 inch	Weight	31 kg
Maximum Operating Pressure	232.06 psig	Filter Efficiency Rating	99.99999 %
Connection Type	Flange DIN 2633	Maximum Operating Temperature	34.7 °F
Number of Elements	1	Drain Port Size	1/2 inch
Minimum Operating Temperature	120 °C	Compatible Element	TC50CFE
Materials of Construction	Housing: Steel, Seals: C4400	Maximum Flow Rate	n/a Contact us
Division	Gas Separation and Filtration Division EMEA	Application	Filtration of technical and industrial gases
Height	36.65 inch	Micron Rating	0.01 MICRON
Brand	Zander	Port Connection (inch)	DN50
Filter Type	Oil removal filter with 1 TC50 element	Certificates	ATEX
