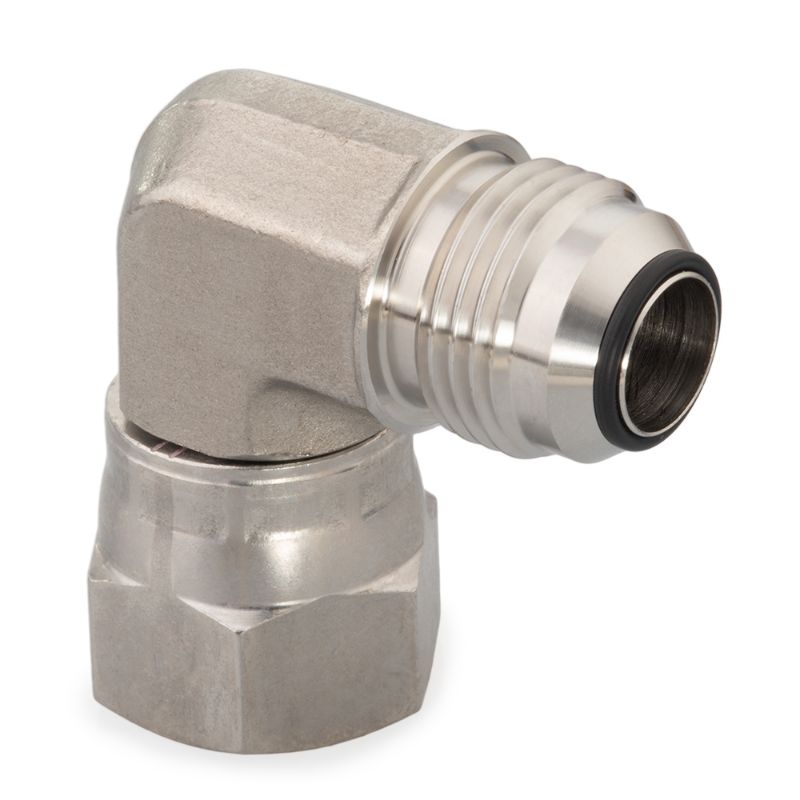

Parker 12 C6XO-SS - Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12 C6XO-SS

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J514	Connection 3 Tube Outside Diameter	na
Connection 3 Size	na	Connection Type	Soft Seal Stainless Steel 37° Flare
Shape	90° Elbow	Connection 2 Thread Size (inch)	na
Connection 1 Style	Male 37° Flare with O-ring Seal on Nose	Connection 2 Style	Female 37° Flare Swivel
Connection 1 Tube O.D. (inch)	3/4	Connection 2 Tube O.D. (inch)	3/4

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
