*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

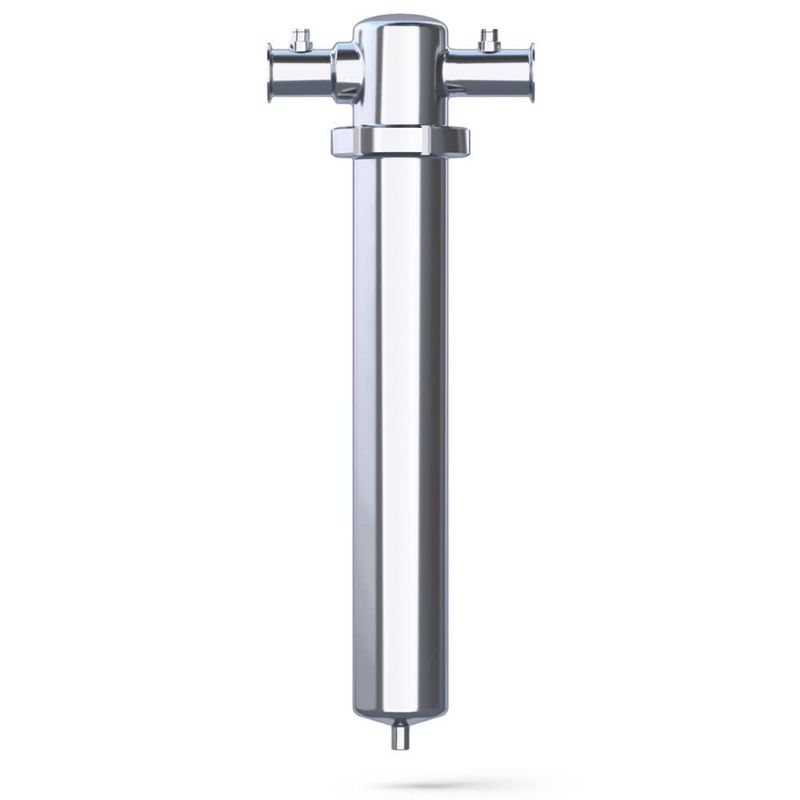

Parker TGE318/16CF-C/A - TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection

ATEX approved stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TGE318/16CF-C/A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Product Type	Natural Gas Filter
Width	20.9 inch	Height	9.2 inch
Residual Oil Content	≤ 0.01 mg/m³	Application	Filtration of Compressed Natural Gas
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Operating Pressure	290.0 psig Maximum	Filter Efficiency Rating	99.99999 %
Product Series	TGE ATEX Series	Technology	Filtration
Filter Type	Stainless Steel	Compatible Element	TE18CF
Connection Type	Clamp ASME BPE 2"	Filter Type	High Efficiency Coalescing
Flow Rate	1150 m³/h @ 7 barg (677 cfm @ 102 psig)	Micron Rating	Down to 0.01 micron

Product resources

Literature and Reference Materials
