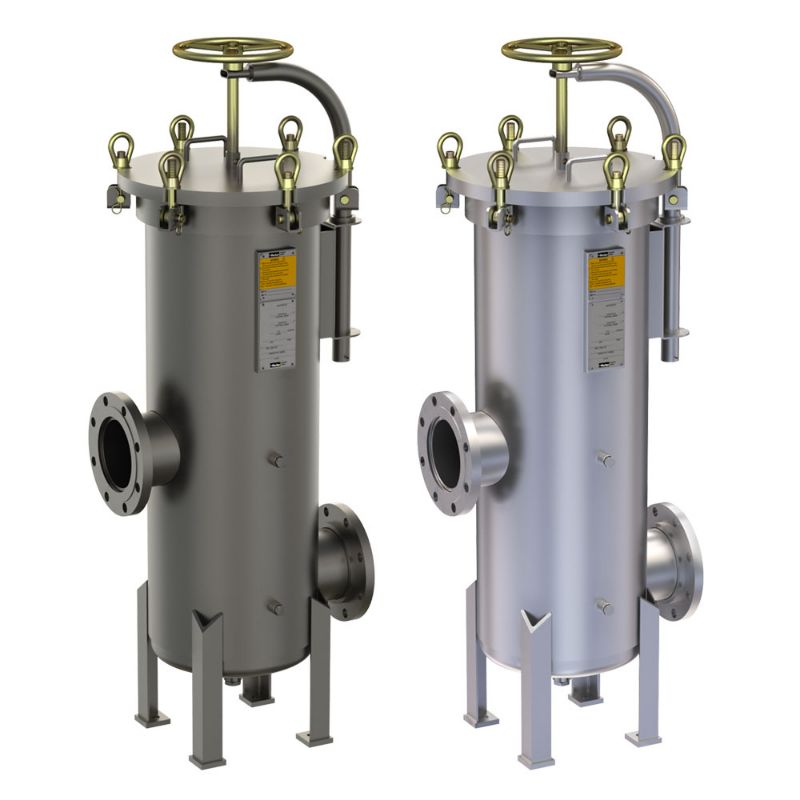

Parker 4HSF12-3-3F - FULFLO SF MULTI-CARTRIDGE FILTER VESSELS | CARBON STEEL, 304 & 316 STAINLESS STEEL, ASME CODE DESIGN FOR LIQUID & GAS FILTRATION

Fulflo SF multi-cartridge filter vessels in carbon steel, 304 & 316 stainless steel designs meet a broad range of liquid and gas applications and conform to ASME code.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4HSF12-3-3F

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Industry	Oil and Gas
Brand	domnick hunter	Function	Clarification/Prefiltration/Polishing
Maximum Operating Temperature	300	Maximum Operating Pressure	300
Seal Material	Buna-N (250 F max.)	Specifications Met	ASME Sec. VIII, Div. 1, U stamp
Media	304 Stainless Steel	Flow Rate	180
Filter Construction	Mutli-Cartridge Filter Vessel	Series	300 psi
Options	No Cover Lift	Quantity	12 cartridges
Connection Size	3-inch ANSI flange	Materials of Construction	304 Stainless Steel
Length	30 inch cartridge
