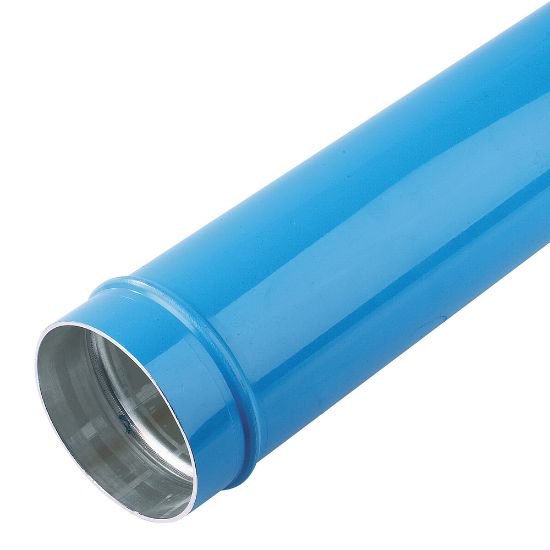

Parker TA16 L8 04 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TA16 L8 04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Shape	Straight	Technology	Pneumatics
Division	Low Pressure Connectors Europe Division	Configuration	Pipe to Pipe
Industry	General Industrial	For Fluid Type	Air
Outside Diameter	6 inch	Specifications Met	QUALICOAT
Body Material	Treated Aluminum	Brand	Transair
Assembly Time	0.15 Hours	Color	Blue
Size	6 inch	Connection 1 Type	Pipe
Quantity per Box	1	Length	6 m
Weight	64,840 lb	Division	Fluid System Connectors Division
Product Type	Rigid Aluminum Pipe	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Temperature	185 °F	Minimum Operating Temperature	-4 °F
Application	Inert Gases	Maximum Operating Pressure	13 bar 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Pipe O.D. (inch)	6	Color	Blue
Length (ft)	20	Length (m)	6
Pipe O.D. (mm)	168.3
