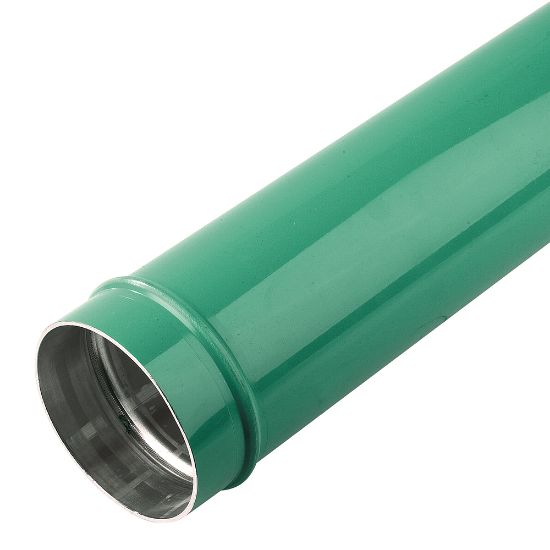

Parker TA16 L3 02 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TA16 L3 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Treated Aluminum
Size	4 inch	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Assembly Time	0.15 Hours	Specifications Met	EN 573.3
Connection 1 Type	Pipe	Quantity per Box	1
Color	Green	Vacuum Pressure Rating	0.03 inch-Hg
Brand	Parker	Product Type	Rigid Aluminum Pipe
For Fluid Type	Air	Length	20 ft
Outside Diameter	100 mm	Application	Inert Gases
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Weight	12,559 kg	Maximum Operating Temperature	85 °C
Configuration	Pipe to Pipe	Industry	General Industrial
Shape	Straight	Technology	Pneumatics
Length (ft)	20	Pipe O.D. (inch)	4
Pipe O.D. (mm)	101.8	Length (m)	6
Color	Green
