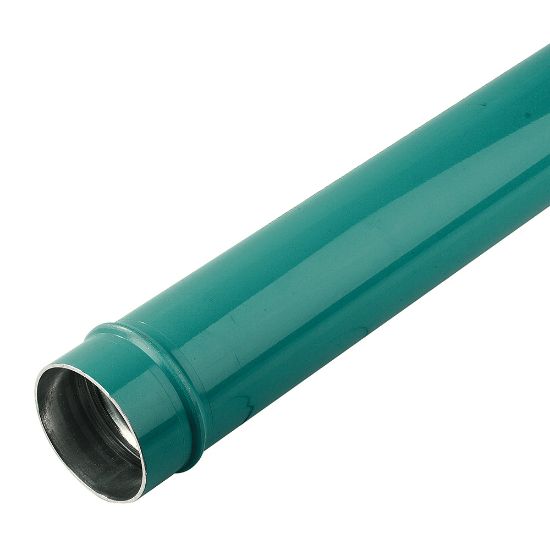

Parker TA16 L1 02 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TA16 L1 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	232 psi	Color	Green
Length	20 ft	Product Type	Rigid Aluminum Pipe
Outside Diameter	76 mm	Vacuum Pressure Rating	0.03 inch-Hg
Configuration	Pipe to Pipe	Shape	Straight
Division	Low Pressure Connectors Europe Division	Technology	Fluid & Gas Handling
Application	Compressed Air	Maximum Operating Temperature	85 °C
Industry	General Industrial	Minimum Operating Temperature	-20 °C
Division	Fluid System Connectors Division	Weight	16,980 lb
Body Material	Treated Aluminum	Brand	Transair
Assembly Time	0.15 Hours	Size	76.3 mm
For Fluid Type	Industrial Gas	Specifications Met	TUV
Connection 1 Type	Pipe	Quantity per Box	1
Pipe O.D. (mm)	76.3	Color	Green
Length (ft)	20	Length (m)	6
Pipe O.D. (inch)	3
