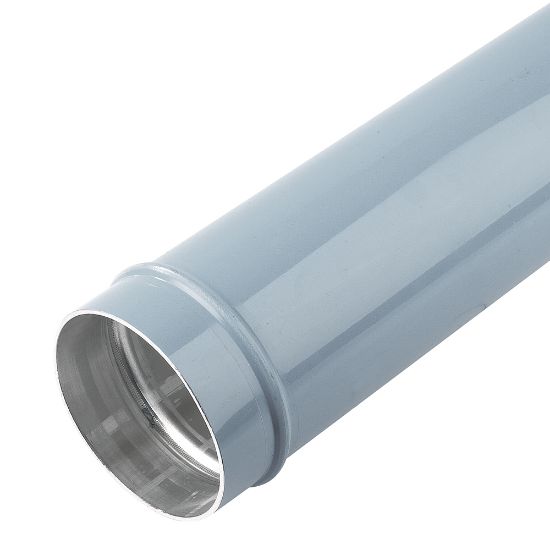

Parker TA06 L8 06 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TA06 L8 06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	6 m	Minimum Operating Temperature	-20 °C
Quantity per Box	1	Body Material	Treated Aluminum
Application	Vacuum	Assembly Time	0.15 Hours
Division	Low Pressure Connectors Europe Division	Maximum Operating Pressure	13 bar 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Maximum Operating Temperature	185 °F	Connection 1 Type	Pipe
Color	Gray	Industry	General Industrial
Weight	29,412 kg	For Fluid Type	Air
Brand	Parker	Product Type	Rigid Aluminum Pipe
Vacuum Pressure Rating	0.03 inch-Hg	Size	168.3 mm
Specifications Met	ASME B31.1 - 31.9	Outside Diameter	168 mm
Shape	Straight	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Configuration	Pipe to Pipe
Pipe O.D. (mm)	168.3	Length (ft)	20
Color	Gray	Pipe O.D. (inch)	6
Length (m)	6
