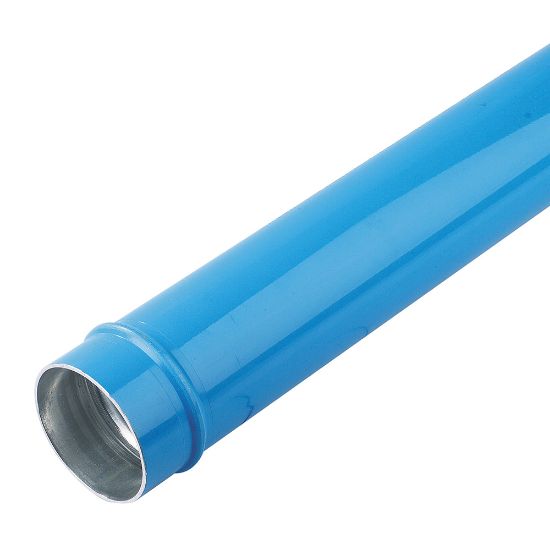

Parker TA06 L1 04 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TA06 L1 04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Assembly Time	0.15 Hours
Outside Diameter	3 inch	Body Material	Treated Aluminum
Color	Blue	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Length	6 m	Quantity per Box	1
Vacuum Pressure Rating	0.03 inch-Hg	Size	76 mm
Product Type	Rigid Aluminum Pipe	Division	Low Pressure Connectors Europe Division
Application	Inert Gases	Configuration	Pipe to Pipe
Shape	Straight	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Technology	Fluid & Gas Handling
Weight	7,620 kg	Brand	Parker
Industry	General Industrial	Specifications Met	EN 755.2
Color	Blue	Length (ft)	20
Length (m)	6	Pipe O.D. (inch)	3
Pipe O.D. (mm)	76.3
