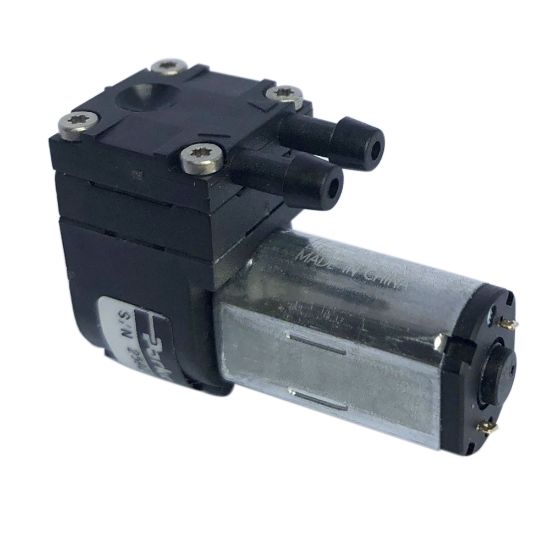

Parker T5-1IC-03-1EEP - T2-05 Micro Diaphragm Pump

Parker's T2-05 micro diaphragm pump is designed to fit where other pumps cannot due to its small, compact package size. The pump's low power, small size, and light weight play a critical role in portable gas detection and medical applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. T5-1IC-03-1EEP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operational Life	1500 Hours	Height	0.89 inch
Motor Type	Iron Core Brush	Length	31.5 mm
Flow Rate	0.7 L/min	Width	0.53 inch
Operating Temperature	-20 to 50 °C	Diaphragm Material	EPDM
Division	Precision Fluidics Division	Weight	11 g
Industry Application	Gas Sampling	Operating Pressure	430 mbar
Product Type	Diaphragm Pump	Body Material	ABS
For Fluid Type	Air	Vacuum Pressure Rating	-5.3 psi
Maximum Continuous Vacuum Pressure	-2 psi	Noise Level	45 dBA
Maximum Continuous Pressure	2.0 psi	Operational Life	Up to 1,500 hours
Free Flow Rate	Up to 0.8 L/min	Pump Size	Single Head
Pump Type	Pressure and/or Vacuum	Motor Option	Iron Core Brush DC
