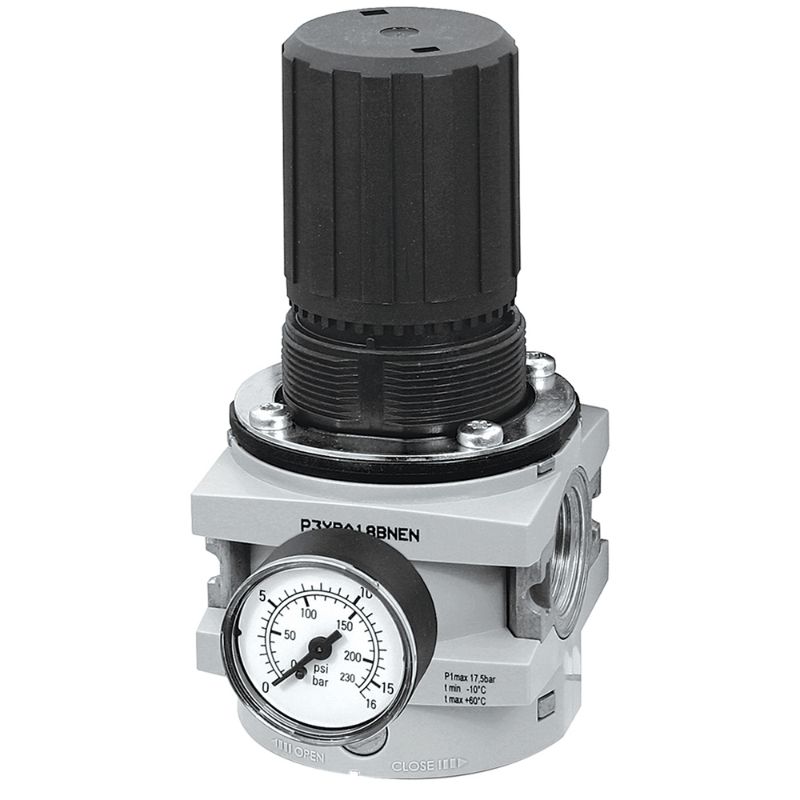

Parker FP3YRA98BNFN - Transair Pressure Regulators

Parker's line of pressure regulators offer a quick response to regulating pressure. Each pressure regulator comes equipped with an easy to read gauge for accurate pressure control.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FP3YRA98BNFN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Relief Pressure	145 psi	Cap Material	ABS
Seal Material	Nitrile / NBR	Division	Fluid System Connectors Division
Bonnet Material	Polyamide (PA) Glass-filled	Body Material	Aluminum
Spring Material	n/a	Valve Material	Brass / NBR
Screw Material	n/a	Maximum Operating Pressure	254 psig
Maximum Operating Temperature	140 °F	Nut Material	n/a
Minimum Operating Temperature	-40 °F	Adjustment Screw Material	Polyamide (PA) Glass-filled
Diaphragm Material	n/a	Port Thread Size (Inch)	1
Flow Rate (SCFM)	680	Flow Rate (dm3/s)	321
