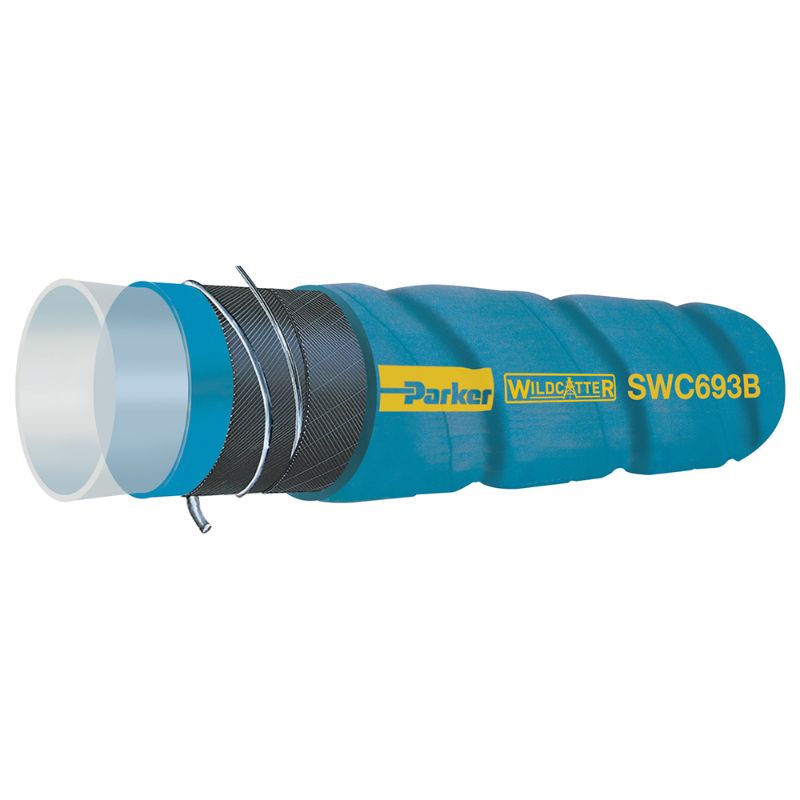

Parker SWC693B-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SWC693B-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Acids
Maximum Operating Temperature	82 °C	Minimum Bend Radius	51 mm
Nominal Hose Inside Diameter	50 mm	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Compatible Fitting	n/a	Application	Oilfield
Vacuum Pressure Rating	29 Inch-Hg	Weight	1.39 kg/m
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Minimum Operating Temperature	-40 °C
Cover Structure	Corrugated	Outside Diameter	2.540 inch
Size	-32	Inside Diameter	50.8 mm
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Maximum Operating Pressure	250 psi
Hose I.D. (inch)	2	Color	Blue
