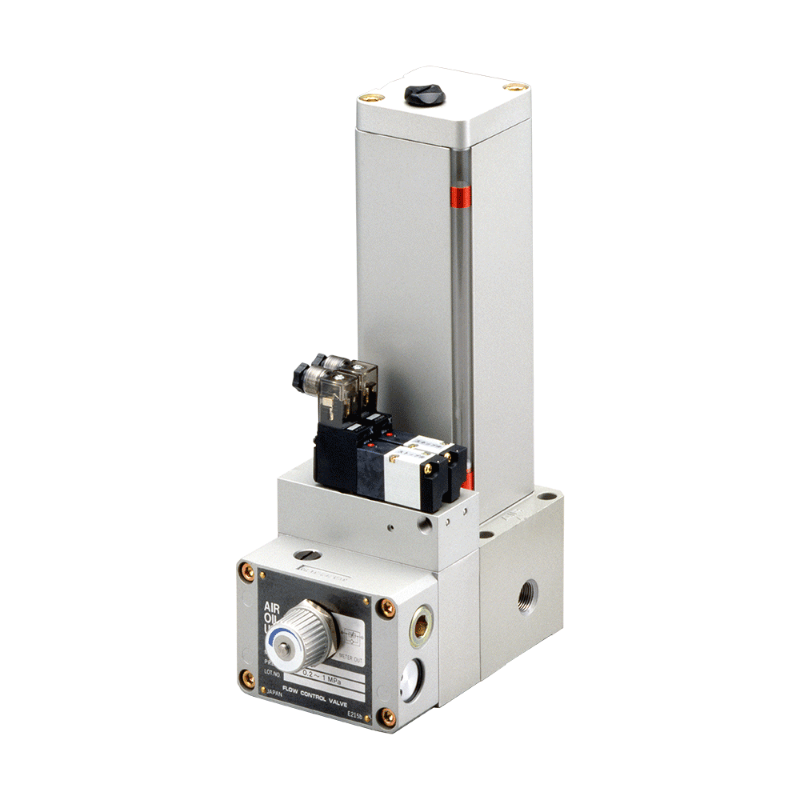

Parker H3FG00013660 - Air-Oil Unit Model:AHU2-063 (Convertor Capacity 0.16~1.6L)

Air-Oil Unit AHU2-063 series that converts pneumatic pressure to hydraulic control and realizes stable speed control. The same control as hydraulic such as constant speed control and arbitrary stop is possible.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H3FG00013660

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	1 MPa	Division	TAIYO Division
For Fluid Type	Petroleum-based Fluid	Operating Temperature	-5 ~+50 °C (No freezing)
Proof Pressure	1.5 MPa	Product Style	Air-Oil converter
Pilot Port Size	Rc1/8	Pilot Pressure Ratio	0.3xMain pressure+0.25MPa to 0.7MPa MPa
Liquid Inlet Port Size	Rc1/2	Minimum Opening Pressure	0 MPa
Supply Air Inlet Port Size	Rc3/8	Input Voltage	n/a
Sensor type	1 sensor	Capacity	0.16 L
Diameter	63 mm	Sensor Connection	ZR3 (with contact, With lamp, Upper wiring, w/1.5 m cord)
Optional Accessories	N/A	Maximum Flow Rate (lpm)	40
Assembled Control Valve Type	Without flow valve	Assembled Combined Valve Type	Without valve
