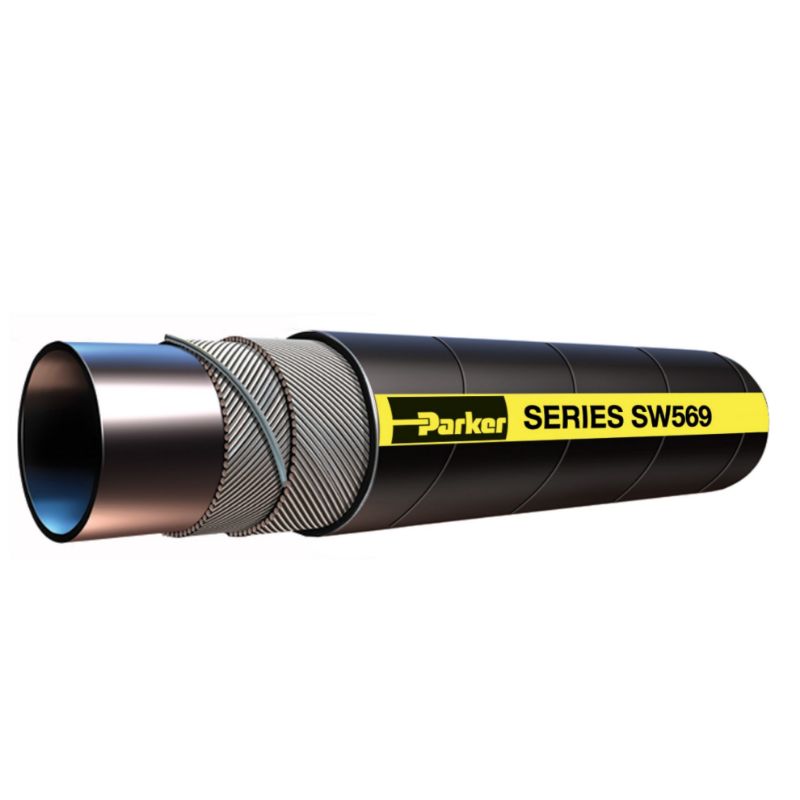

Parker SW569-3000 - ARMADA® Marine Multipurpose Oil Resistant Suction Hose, Series SW569

Armada Marine Multipurpose Oil Resistant Suction Hose is designed for marine engine fuel supply and venting, hardwall wet exhaust and other applications to 212°F and 75 psi, Series SW569

Availability:	Quote Required
Partner Available:	61 In Stock

Brand Parker

Part No. SW569-3000

$42.42

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	87.8 mm
Cover Color	Black	Application	Marine
Vacuum Pressure Rating	737 mm-Hg	Maximum Operating Pressure	40 psi
Minimum Bend Radius	9 inch	Maximum Operating Temperature	212 °F
Inside Diameter	76.2 mm	Division	Hose Products Division
Minimum Operating Temperature	-20 °F	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Media	Fuels - Check fuel type with our catalogue chart.	Design Factor	4:1
Hose Inner Tube Material	Nitrile	Cover Material	Chloroprene Rubber (CR)
Weight	0.79 kg/ft	Specifications Met	ISO 8469 (B1)
Hose I.D. (inch)	3

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
