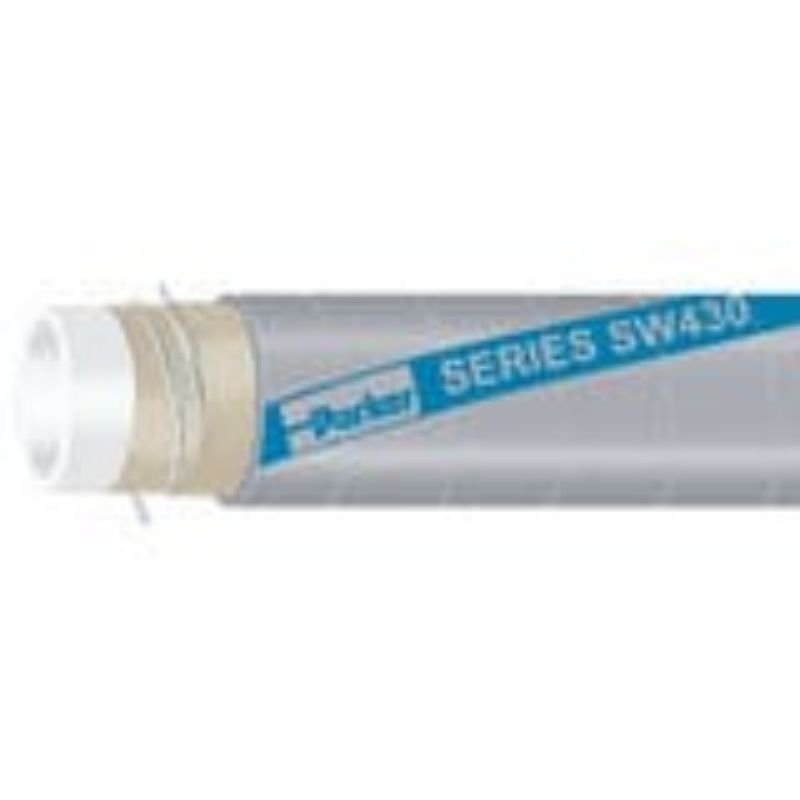

Parker SW430-2000 - Food and Beverage Suction Hose, Series SW430

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SW430-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Length per Package	100
Cover Structure	Wrapped	Maximum Operating Temperature	225
Cover Color	Gray	Minimum Bend Radius	7
Media	Food & Beverage (Fatty & Oily Foods)	Hose Inner Tube Material	White
Inside Diameter	2	Package Type	Coil
Division	Hose Products Division	Vacuum Pressure Rating	Full
Outside Diameter	2.691	Maximum Operating Pressure	150
Design Factor	4:1	Specifications Met	3A
Cover Material	Nitrile	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix
Minimum Operating Temperature	-20	Tube Material	Nitrile
Weight	1.41	Application	Food & Beverage Processing
Hose I.D. (inch)	2	Maximum Working Pressure (psi)	150

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
