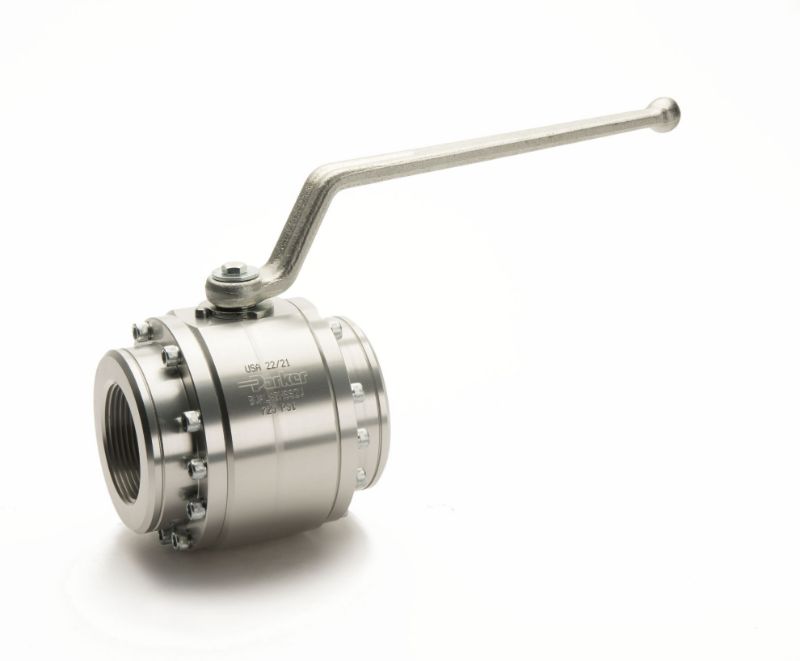

Parker BVAL12NSS2N - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BVAL12NSS2N

$360.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Inline
Division	Hydraulic Valve Systems Division	Connection Type	NPT
Maximum Operating Temperature	100	Options	n/a
Body Material	Aluminum	Mounting Type	Inline
Product Type	2-Way Low Pressure	Minimum Operating Temperature	-20
Actuation Type	Manual	Weight	0.75
Maximum Operating Pressure	1450	Connection Size	3/4
Seal Material	Nitrile	Function	2-Way
Handle Type	Standard Handle	Connection Size	3/4"
Connection Type	NPT	Mounting Type	Inline
Product Type	2-Way Low Pressure	Maximum Pressure (psi)	1450 PSI

Product resources

Literature and Reference Materials

CATALOG 4121-PACT

BALL VALVES: Pneumatic Actuators and Accessories (PDF)
