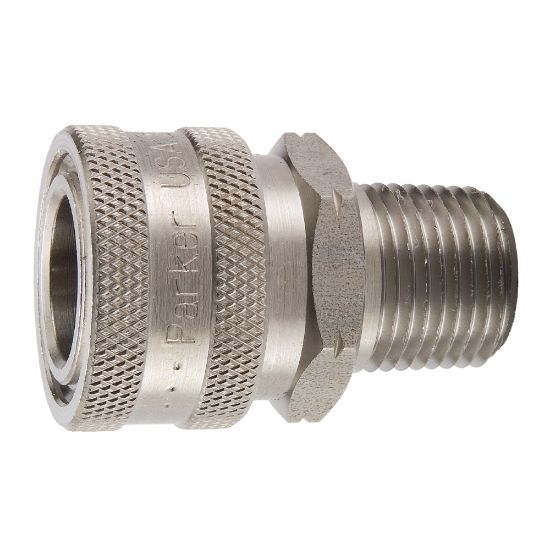

Parker SST-2Y - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SST-2Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	6 Gal/min	Seal Material	Fluorocarbon
Valve Type	Unvalved	Product Type	Push to Connect
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Hex Size	0.81 inch	Application	High Flow
Minimum Operating Temperature	-15 °F	Body Material	Stainless Steel
Connection Type	Female NPTF	Maximum Operating Pressure	6700
Coupling Half	Female Coupler	Body Size (inch)	1/4
Body Material	303 Stainless Steel	Connection Thread Size (inch)	1/4 - 18
