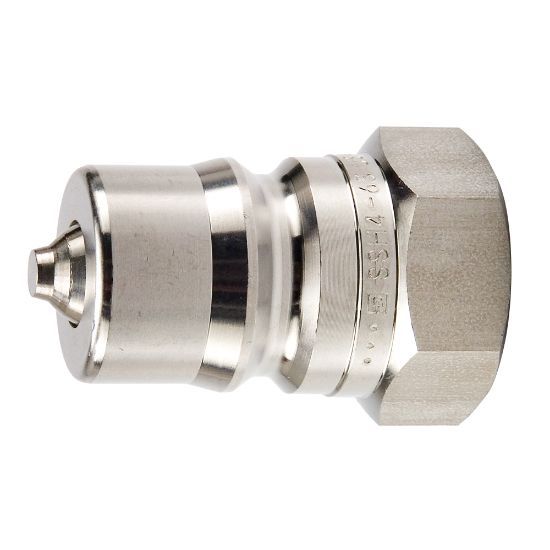

Parker SSH6-63Y-BSPP - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SSH6-63Y-BSPP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Material	316 Stainless steel	Valve Type	Poppet
Vacuum Pressure Rating	27.4 Inch-Hg	Plating Type	na
Division	Quick Coupling Division	Flow Rate	28 Gal/min
Minimum Operating Temperature	-15 °F	Hex Size	1.38 inch
Maximum Operating Temperature	400 °F	Specifications Met	ISO 7241-1, series B
Body Material	Stainless Steel	Body Size (inch)	3/4
Body Material	316 Stainless Steel	Connection Thread Size (inch)	3/4 - 14
Coupling Half	Male Nipple	Maximum Operating Pressure	3000
Connection Type	Female BSPP	Seal Material	Fluorocarbon
Application	General Purpose

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
