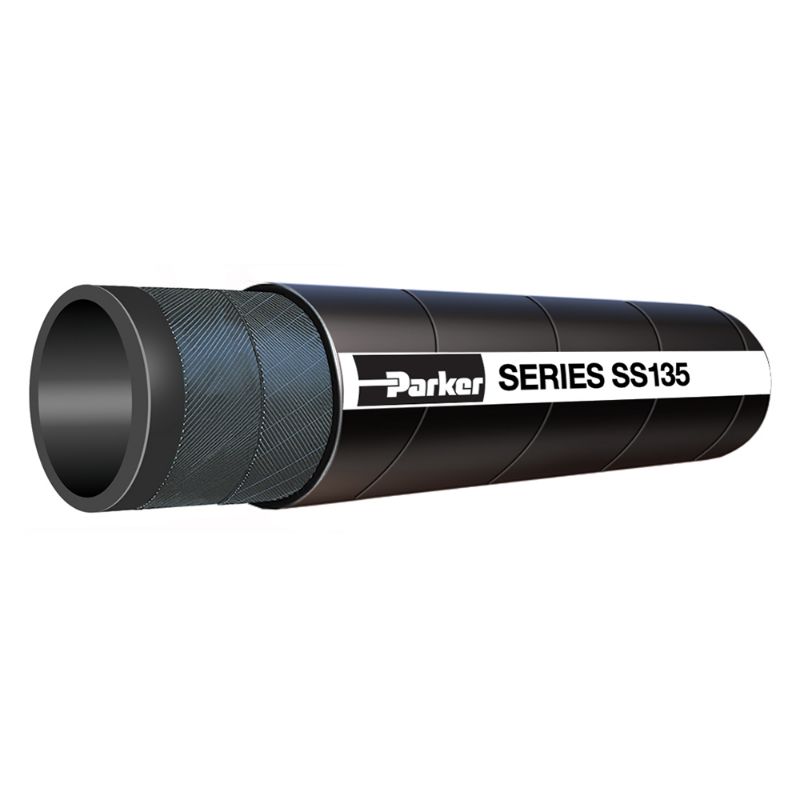

Parker SS135-5000 - WILDCATTER® Dry Cement Material Handling Hose, Series SS135

Wildcatter Dry Cement Material Handling Hose incorporates a 1/8” thick rubber tube and is designed for gravity flow/low pressure transfer of dry abrasive materials in applications to 180°F and 65 psi, Series SS135

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SS135-5000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Inside Diameter	5 inch	Weight	1.90 lb
Maximum Operating Pressure	65 psi	Minimum Bend Radius	n/a
Cover Structure	Wrapped	Application	Material Handling
Hose Reinforcement Material	2 Plies of Textile	Hose Inner Tube Material	Styrene Butadiene Rubber (SBR)
Minimum Operating Temperature	-40 °F	Media	Dry Abrasive Powders
Maximum Operating Temperature	82 °C	Cover Color	Black
Division	Hose Products Division	Package Type	Coil
Length per Package	100 ft	Outside Diameter	5.500 inch
Cover Material	Styrene Butadiene Rubber (SBR)	Hose I.D. (inch)	5
