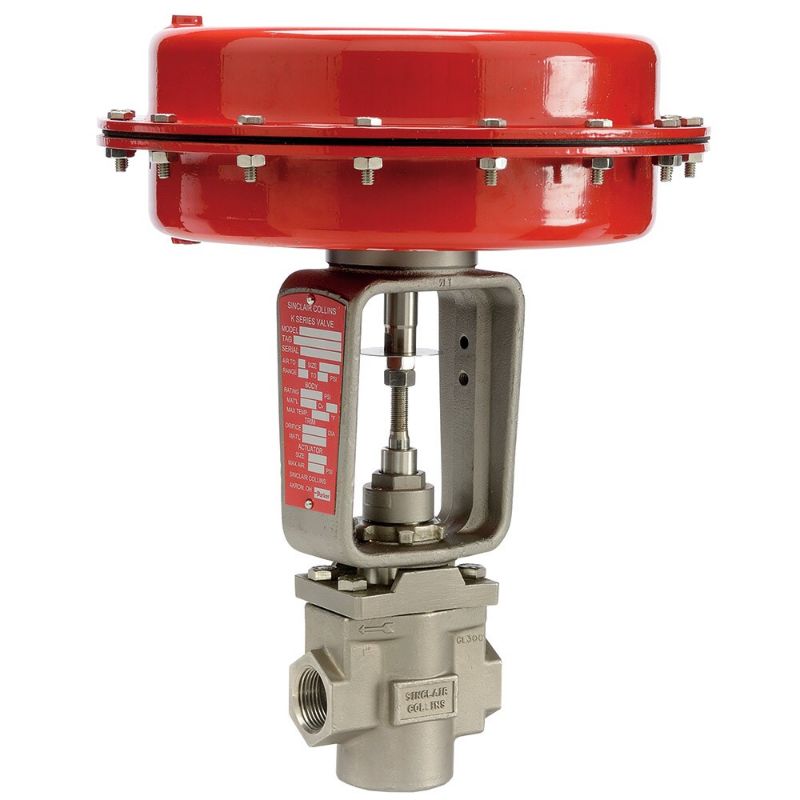

Parker K01-32013000 - Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Valves are ideally suited for applications requiring higher media temperatures. Constructed of highly durable bronze, these high performance valves are fully tested prior to shipping

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K01-32013000

$2,220.66

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Normally Closed
Division	Fluid Control Division	Body Material	Bronze
Number of Ports	2	Actuation Type	Pneumatic Operated
Flow Coefficient 1	8 Cv	Port Type	NPTF
Product Series	Sinclair Collins K Series	Flow Characteristic	Equal%
Orifice 1 Size	0.84 inch	Actuator Size	37
Seal Material	Stainless Steel	Maximum Pilot Pressure	35 psi
Maximum Pressure Differential	250 psi	Valve Type	2-Way
Weight	22 lb	Maximum Fluid Temperature	400 °F
Minimum Fluid Temperature	-40 °F	Media	Valves for steam, air, neutral gasses and liquids
Port Size	3/4 inch	Flow Characteristic	Equal%
Actuator Size	37

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
