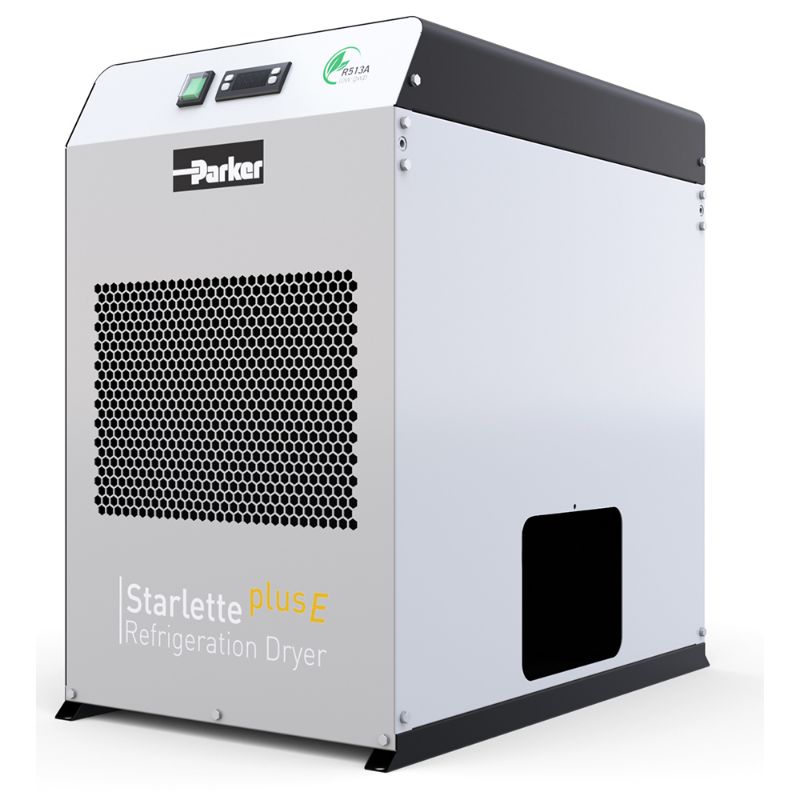

Parker SPS032-A2301DF16EXS - StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS032-A2301DF16EXS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Dew Point	Standard: 3°C (37°F)<br/>	Refrigerant Type	R513A (Low GWP Refrigerant)
Technology	Filtration	Connection Type	BSPP
Brand	Parker	Specifications Met	PED 2014/68/EU Fluid Group II
Ingress Protection Rating	IP22 Indoor Use Only	Port Size	1 inch
Power Consumption	0.30 kW (50Hz)	Noise Level	< 75 dBA
Weight	101 lb	Industry	Industrial Manufacturing Equipment
Operating Pressure	29 to 232 psig	Product Series	StarlettePlus-E
Operating Temperature	5 to 50 °C	Product Type	Compressed Air Dryer
Electrical Requirements	230V 1ph 50Hz/60Hz	Flow Rate	104.0 CFM at 102 psig, 60Hz
Product Style	Refrigeration	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Application	Compressed Air Applications
Depth	630.0 mm	Ambient Temperature	50.0 °C Maximum
Width	15.7 inch	Height	650.0 mm
Flow Rate	192 m³/h @ 7 barg (113 cfm @ 102 psig) 50 Hz	Drain Option	Electonic Level Sensing
