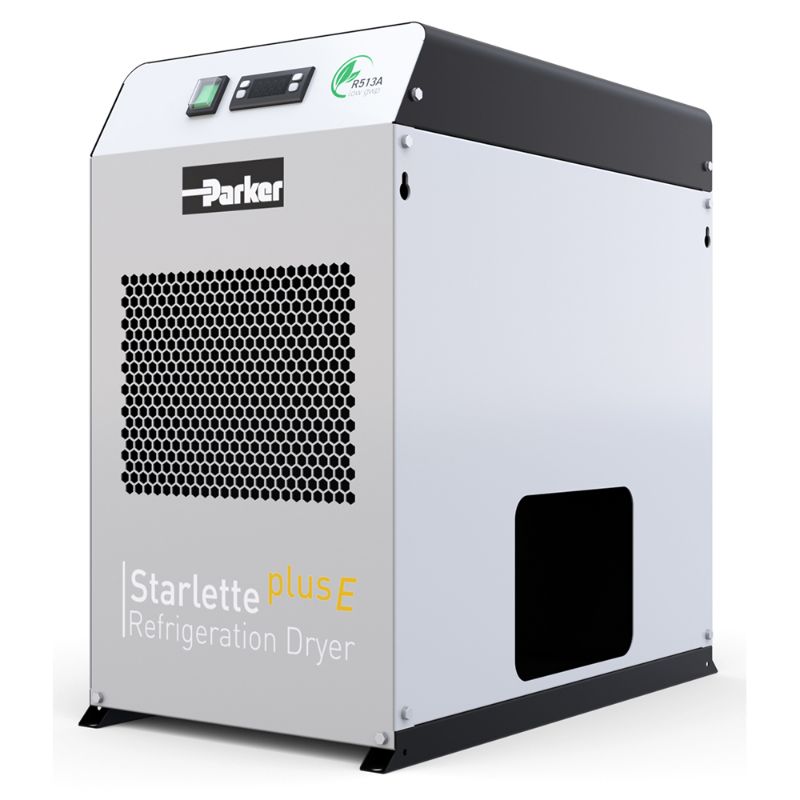

Parker SPS014-A2301DF16FHS - StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS014-A2301DF16FHS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Dew Point	Standard: 3°C (37°F)<br/>	Division	Gas Separation and Filtration Division EMEA
Refrigerant Type	R513A (Low GWP Refrigerant)	Technology	Filtration
Power Consumption	0.15 kW (50Hz)	Operating Pressure	2 to 16 barg
Connection Type	BSPP	Flow Rate	96.0 m3/hour at 7 barg, 60Hz
Application	Compressed Air Applications	Height	22.8 inch
Ambient Temperature	50.0 °C Maximum	Industry	Industrial Manufacturing Equipment
Product Series	StarlettePlus-E	Noise Level	< 75 dBA
Port Size	3/4 inch	Depth	550.0 mm
Specifications Met	PED 2014/68/EU Fluid Group II	Product Style	Refrigeration
Brand	Parker	Weight	77 lb
Ingress Protection Rating	IP22 Indoor Use Only	Operating Temperature	5 to 50 °C
Electrical Requirements	230V 1ph 50Hz/60Hz	Width	13 inch
Product Type	Compressed Air Dryer	Division	Gas Separation and Filtration Division EMEA
Drain Option	External Float	Flow Rate	84 m³/h @ 7 barg (49 cfm @ 102 psig) 50 Hz
