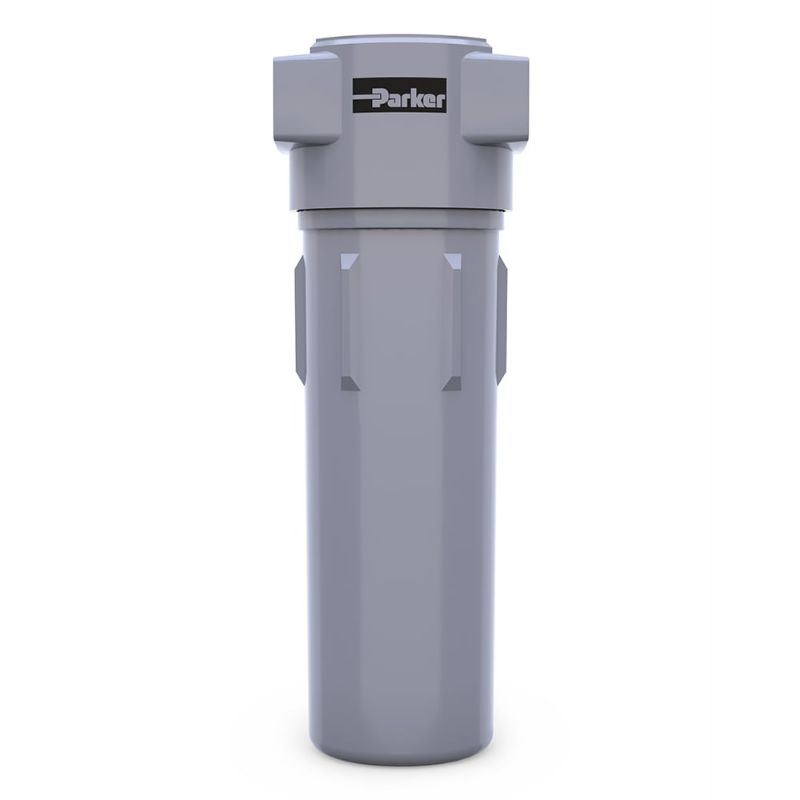

Parker G2/50XP - G50 Series Compressed Air Filters

High efficiency compressed air filters for industrial applications requiring pressures of up to 45 barg (653 psig)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. G2/50XP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	PED 2014/68/EU Fluid Group. II.	Product Series	G50 Series
Division	Gas Separation and Filtration Division EMEA	Operating Temperature	35 to 176 °F
Filter Efficiency Rating	99.9999 %	Drain	Manual Drain
Connection Type	BSPP	Compatible Element	1030XP
Technology	Filtration	Brand	Parker
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Height	200.0 mm
Operating Pressure	290 to 725 psig	Weight	0.8 kg
Element Change Interval	12 months or 6000 hours	Product Type	Compressed Air Filter
Application	Compressed Air and Nitrogen Gas Applications	Materials of Construction	Die Cast Aluminium
Division	Gas Separation and Filtration Division EMEA	Width	2.4 inch
Micron Rating	Down to 0.01 micron	Port Size	¼"
Maximum Flow Rate	75 m³/h @ 7 barg (44 cfm @ 102 psig)	Filter Type	High Efficiency Coalescing and Dry Particulate

Product resources

Literature and Reference Materials

Product Information Sheet - G50 Series Compressed Air Filter - (English) (PDF)
