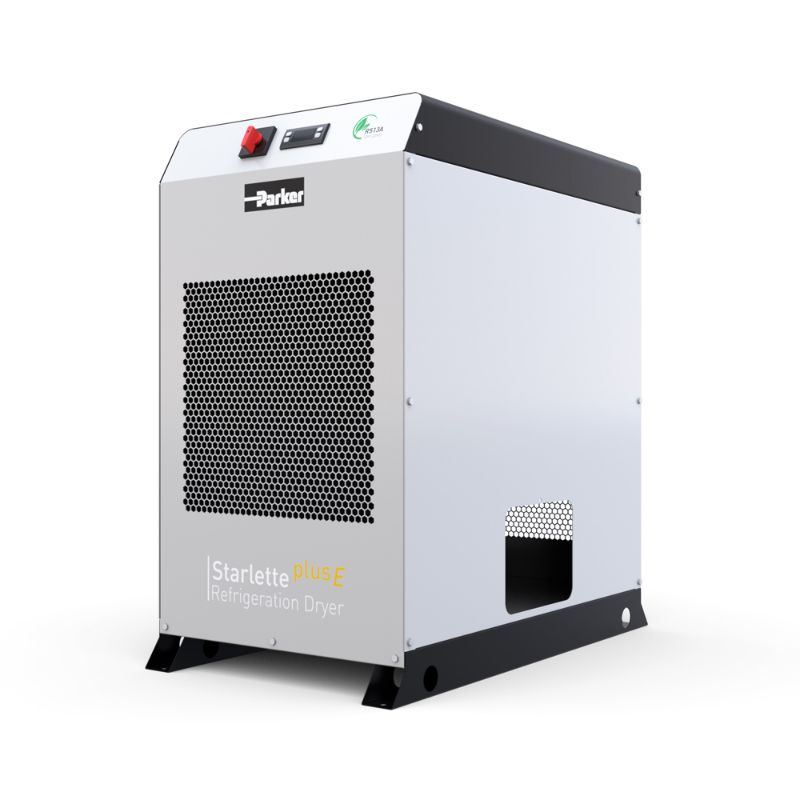

Picture of Parker SPS025-A11516016TIU - StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker SPS025-A11516016TIU - StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America

Refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 10-250 scfm while maintaining industry leading low operating costs.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. SPS025-A11516016TIU
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Refrigerant TypeR-513AMaximum Operating Pressure232.0 psig
Port Connection1/2 inMinimum Operating Pressure2.0 barg
Maximum Ambient Temperature50.0 °CMaximum Operating Temperature149.0 °F
Minimum Operating Temperature41.0 °FProduct TypeRefrigeration
TechnologyNon-CyclingOptional AccessoriesDryer Only
Connection TypeNPT-FIngress Protection RatingIP44
Electronics TypeETL ListedWidth300.0 mm
Pressure Dew PointISO 8573-1 Class 5Height20.5 inch
BrandParkerDepth400.0 mm
DivisionIndustrial Gas Filtration and Generation DivisionWeight55 lb
Design Rating100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambientFlow Rate25 scfm (42.5 m3/h)
Cooling MethodAir Cooled CondenserElectrical Requirements115V / 1Ph / 60Hz
Product resources

Literature and Reference Materials
