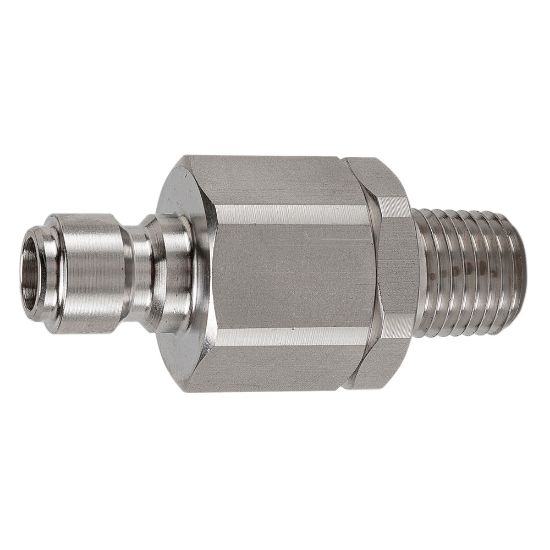

Parker SPEAN4-4M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPEAN4-4M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Unvalved	Vacuum Pressure Rating	1/4 Inch-Hg
Product Type	Manual Connect	Minimum Operating Temperature	-40 °F
Plating Type	na	Division	Quick Coupling Division
Seal Material	na	Hex Size	0.56 inch
Maximum Operating Temperature	250 °F	Application	Vacuum and medium pressure hydraulics
Body Material	Stainless Steel	Connection Thread Size (inch)	1/4 - 18
Connection Type	Male NPSF	Body Size (inch)	1/4
Maximum Operating Pressure	3000	Coupling Half	Male Nipple
Body Material	Stainless Steel

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
