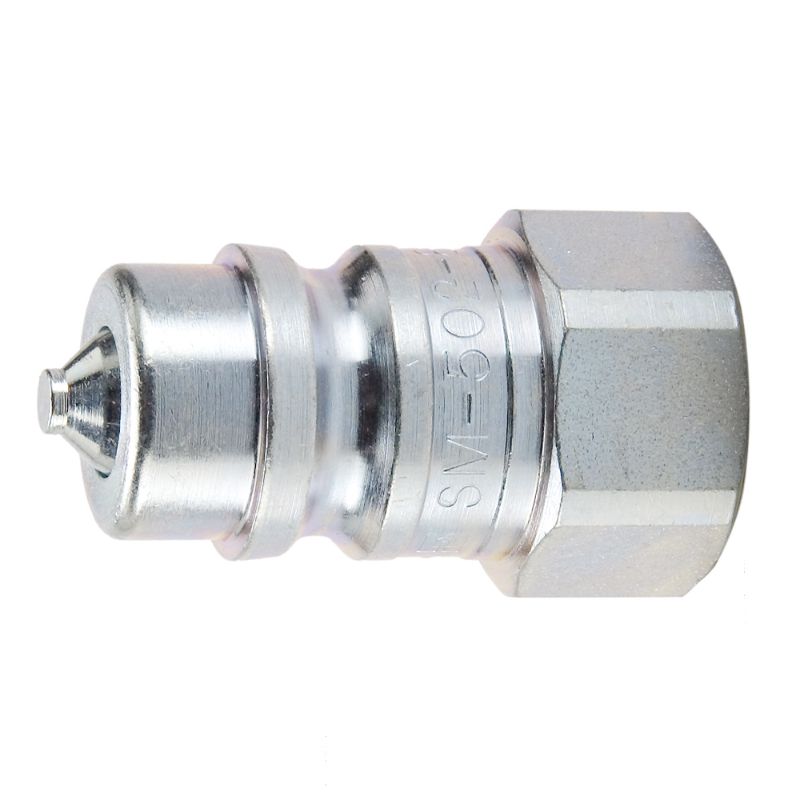

Picture of Parker SM-502-12FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker SM-502-12FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
AFP Availability:
2 Limited Stock
Richmond, VA2 (Pickup only)
Partner Available:7 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. SM-502-12FP
$106.26/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Product TypeManual ConnectPlating TypeZinc with clear trivalent chromate
Minimum Operating Temperature-40 °FApplicationHydraulic |General purpose
Seal MaterialNitrileMaximum Operating Temperature250 °F
DivisionQuick Coupling DivisionValve TypePoppet
Hex Size1.37Body MaterialSteel
Coupling HalfMale NippleConnection TypeFemale NPTF
Body Size (inch)1/2Maximum Operating Pressure6000 PSI
Flow Rate12 GAL/MINConnection Thread Size (inch)3/4 - 14
Product resources

Literature and Reference Materials

Compliance, Certifications & Safety
