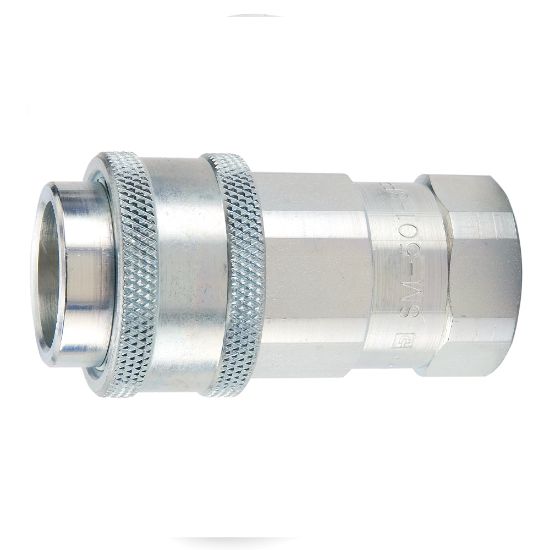

Picture of Parker SM-501-8FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker SM-501-8FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
AFP Availability:
4 In Stock
Richmond, VA2 (Pickup only)
Sumter, SC2
Partner Available:30 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. SM-501-8FP
$68.19/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileValve TypePoppet
Dimensional Weight0.12464028776978417 lbDivisionQuick Coupling Division
Maximum Operating Temperature250 °FApplicationGeneral Purpose
Minimum Operating Temperature-40 °FPlating TypeZinc with Clear Trivalent Chromate
Product TypeManual ConnectHex Size1.25
Body MaterialSteelBody Size (inch)1/2
Maximum Operating Pressure6000 PSIFlow Rate12 GAL/MIN
Connection TypeFemale NPTFConnection Thread Size (inch)1/2 - 14
Coupling HalfFemale Coupler
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
