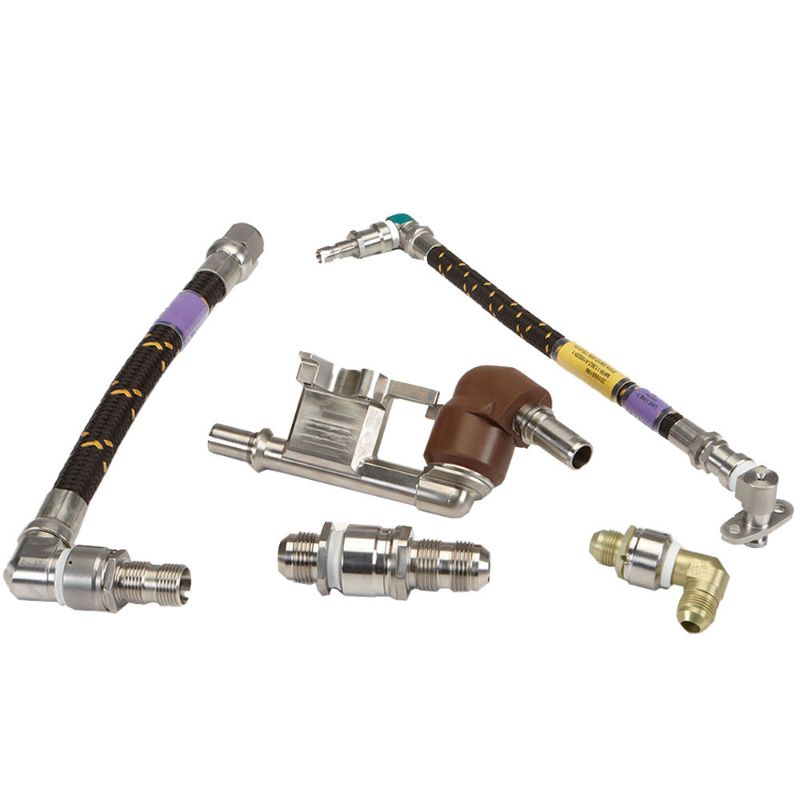

Parker SJ504N04E1-04F - High-Pressure Swivel Joints

Proven high-pressure fittings designed to provide torsional rotation for use in dynamic fluid or pneumatic aerospace conveyance systems, such as cargo doors and retractable landing gears.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SJ504N04E1-04F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	4000	Minimum Operating Pressure	-5
Proof Pressure	8000	Outside Diameter	0.8
Division	Stratoflex Products Division	Burst Pressure	16,000
Continuous Torque	2.0 inch-lbs maximum	Body Material	Stainless Steel
Fitting Type	SAE AS33514E04 to 33515-04	Line Size - Inlet	1/4 inch
Minimum Fluid Temperature (F)	-65	Configuration Type	Straight with Bulkhead fitting
Maximum Fluid Temperature (F)	275	Special Options	None
Fluid Type	Hydraulic Fluid (Red Oil, 5606/83282)
