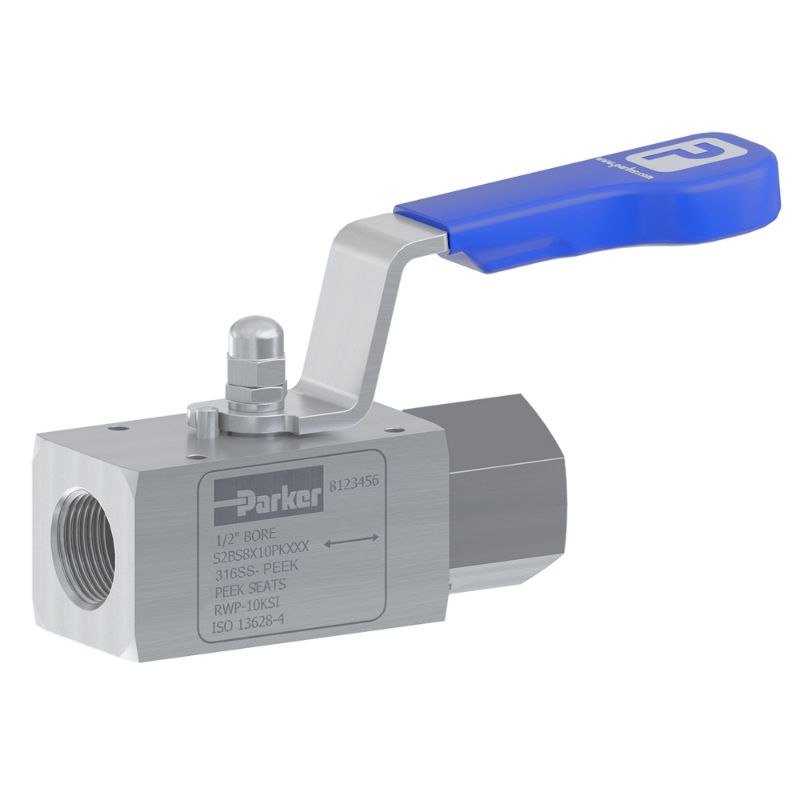

Parker S2BS8E10PK8N-P - Subsea Ball valve, 2-Way, Soft Seat

Parker's 2-way subsea ball valve featuring soft seat and floating ball design for operations up to 10,000 PSI and depths down to 3050m. Designed and tested to API 17D PSL 3 (including API 6A PR2F) for safe and reliable performance in subsea applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2BS8E10PK8N-P

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Options	ROV Low Torque Paddle	Design Rating	API 6A
Additional Options	n/a	Maximum Operating Temperature	121°C
Connection Size	1/2"	Maximum Depth	3050m
Minimum Operating Temperature	-29°C	Valve Configuration	2-way Quarter Turn
Bore Diameter	10mm	Seat Material	PEEK
Maximum Pressure Rating	10,000 PSI	Connection Type	NPT
Division	Instrumentation Products Division	Flow Direction	Bi-directional
Body Material	Duplex Stainless Steel	Options	ROV Low Torque Paddle
Body Material	Duplex Stainless Steel	Bore Diameter (mm)	10
Connection Type	NPT	Seat Material	PEEK
Connection Size	1/2"	Additional Options	n/a

Product resources

Compliance, Certifications & Safety

Certification Subsea 2-Way Ball Valve Soft Seat Lloyds Inspection Certificate (PDF)

Literature and Reference Materials
