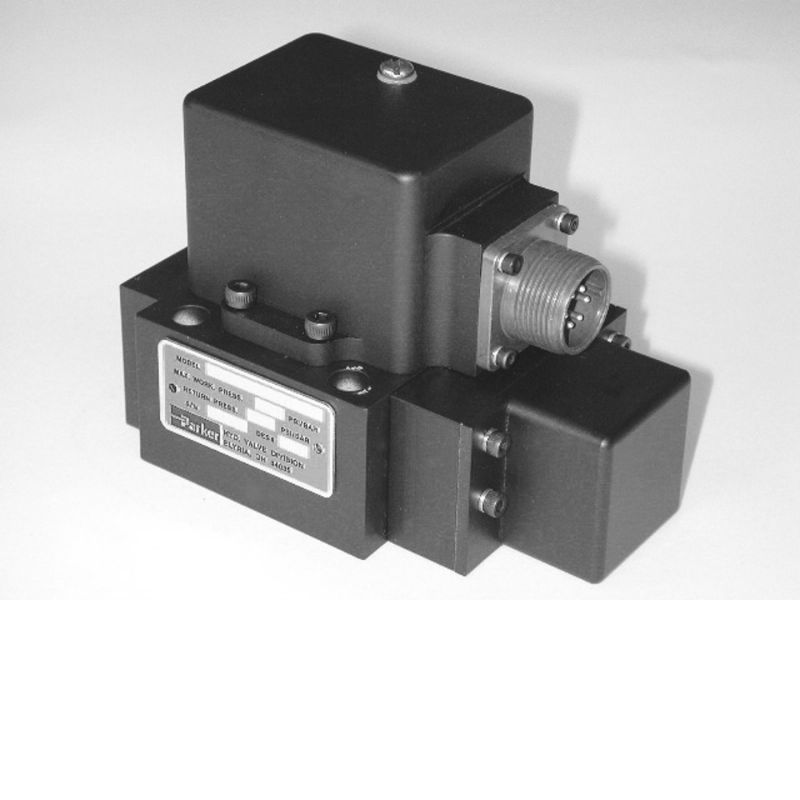

Parker SE2EHAA1BVA10 - Two-Stage, 4-way Flapper and Nozzle Servovalve - SE2E Series

Note: This product is no longer available - please contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE2EHAA1BVA10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Consult catalog for additional features	Minimum Operating Temperature	-4
Mounting Type	0.875 in; 22.23mm	Seal Material	Fluorocarbon
Signal Input	High	Body Material	Aluminum
Valve Type	Servovalve	Division	Hydraulic Valve Systems Division
Maximum Operating Pressure	3000	Maximum Operating Temperature	+185
Maximum Flow Rate	10	Input Power	± 10 volts
Electrical Connection	Port C2; Pin D more positive than Pin E	Weight	3.3
Actuation Type	Hydraulic Pressure	Input Voltage	± 15 volts DC power
Flow Rate (gpm)	10	Pilot Option	Internal
