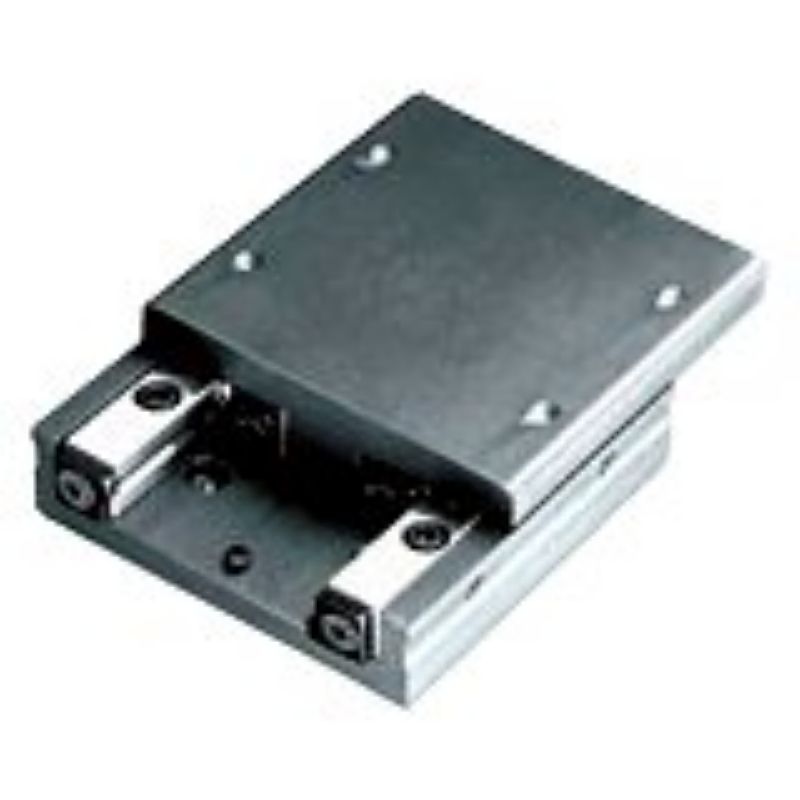

Parker SE100A-150 - Cross Roller Bearing Guided, Standard Manual Linear Slides -SE Series

The SE-series of crossed roller bearing guided manual linear slides offer travels of up to 11.8", a high payload capacity of up to 2738 lbs, plus very good smoothness, very low friction and a very good straightness and flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE100A-150

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Bearing Type	Cross Roller	Maximum Travel	4.92 inch
Number of Axes	1	Product Series	SE Series
Division	Electronic Motion and Controls Division	Mounting Option	Metric Model
Product Type	Linear Slide	Width	100 mm
Load Capacity	2000+ lb	Travel (mm)	125
Payload (lbs)	1236	Width (mm)	100
