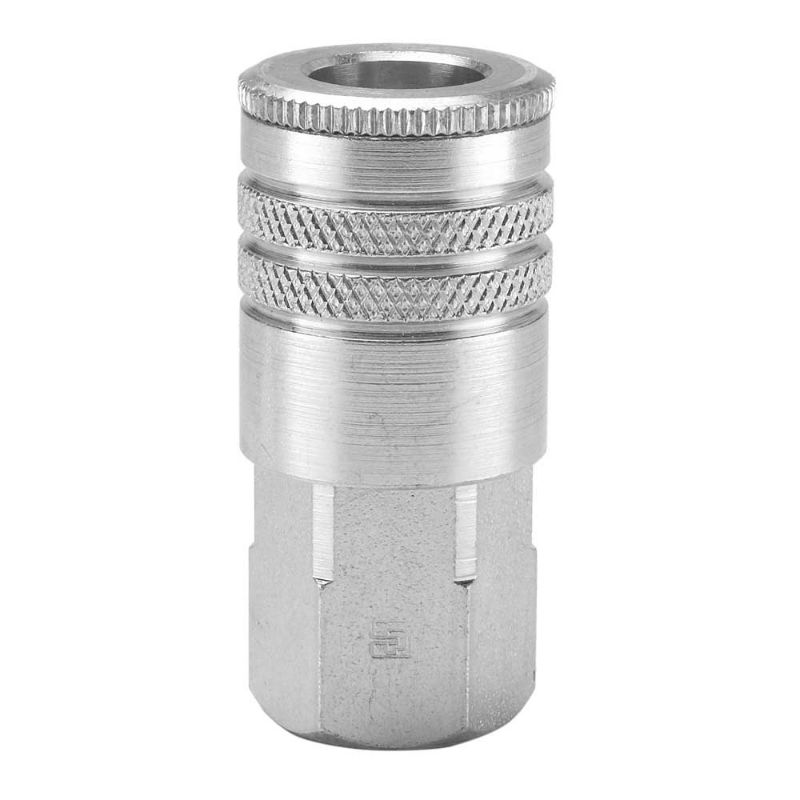

Parker S23 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

15 In Stock

North Chesterfield, VA	14
Jacksonville, FL	1

Partner Available:

15 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. S23

$105.35/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Body Material	Stainless Steel
Minimum Operating Temperature	-40 °F	Plating Type	na
Application	Air	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Coupling Half	Coupler	Valve Type	Tubular
Dimensional Weight	0.02670863309352518 lb	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Sleeve Type	Manual
Thread Style	Female	Connection Type	NPTF
Connection Thread Size (inch)	1/4 - 18	Connection Hose I.D. (inch)	na
Body Material	Stainless steel (303)	Body Size (inch)	1/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
