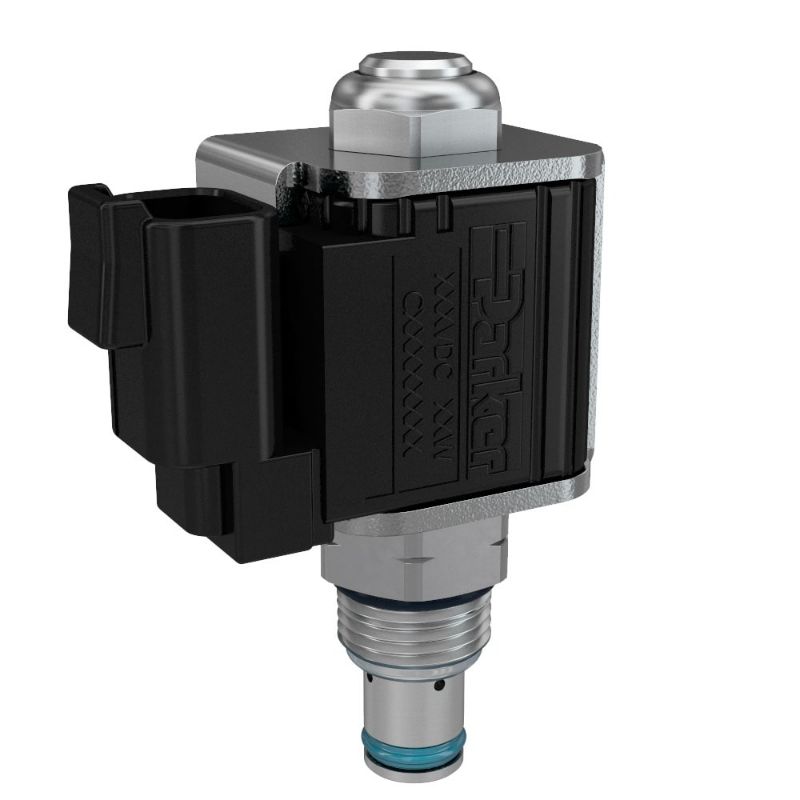

Parker DSL087NM - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL087NM

$131.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Input Voltage	85% of rated voltage at 72°F (20°C)
Body Material	N/A	Mounting Type	Screw in cartridge valve
Maximum Flow Rate	0.3	Leak Rate	5
Operation Type	Solenoid operated, Manually operated	Flange Face Type	N/A
Division	Hydraulic Systems Division	Application	Mobile Hydraulics, Industrial Hydraulics
Operating Temperature	-35 to +200	Installation Torque	23-27
Minimum Operating Temperature	-35	Specifications Met	N/A
Flow Rate	0.3	Wire Mesh Screen Included	No
Response Time	30	Connection Size	N/A
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Weight	.25	Coil Nut Tightening Torque	5-7
Maximum Operating Pressure	3600	Maximum Inlet Pressure Rating	3600
Bore Diameter	N/A	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
ANSI Flange Class	N/A	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	Bi-directional	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	2-way	Seat Material	Steel
Configuration	Normally Open	Cavity Size	C08-2
Override Functionality	N/A	Maximum Operating Temperature	+200
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Valve Systems Division
Coil Type	1/2" Super Coil Low Watt (CCS)	Configuration	Normally Open
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Flow Rate	0.3 GAL/MIN, 1.1 L/MIN
