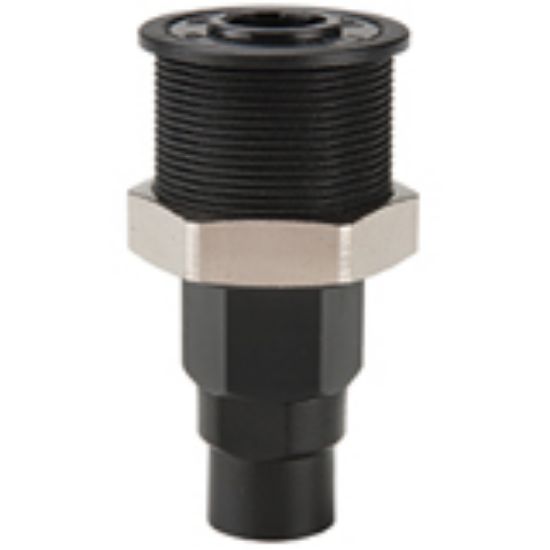

Parker S2-APV-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2-APV-04-FP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	145 psi	Division	Quick Coupling Division
Body Material	Acetal	Minimum Operating Temperature	0 °F
Seal Material	Nitrile	Hex Size	0.67 inch
Product Type	Push-to-Connect	Valve Type	Poppet
Spring Material	Stainless Steel	Maximum Operating Temperature	180 °F
Application	Low pressure fluids and gases	Connection Type	Female Panel Mount NPT
Connection Tube Inside Diameter	na	Body Size (inch)	1/8
Flow Rate	1.5	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/4 - 18

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
